Right rear seat belt assembly
OE / Material Codes
13465331-00SC2EM-5812020Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Seats & Seatbelts
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right rear seat belt assembly
Right rear seat belt assembly Workshop Guide — BYD Atto 3
Right Rear Seat Belt Assembly - Removal and Installation
Removal
- Remove the right C-pillar upper guard assembly. See Right C-Pillar Upper Guard Assembly - Removal and Installation
- Remove 1 fixing bolt from the right rear seat belt assembly.
- Disconnect 1 connector of the right rear seat belt assembly.
- Remove the right rear seat belt assembly.
- Remove 1 fixing bolt
- Remove 1 fixing bolt, and take out the right rear seat belt assembly
Caution When disconnecting the connector, insert the small screwdriver wrapped with tape into the connector slot to pry up the striker, and then pull out the connector.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, check whether the seat belt is installed in place to ensure that there is no distortion or seizure.
Right Rear Seat Belt Buckle Assembly - Removal and Installation
Removal
- Remove the left rear seat cushion assembly. See Left Rear Seat Cushion Assembly - Removal and Installation

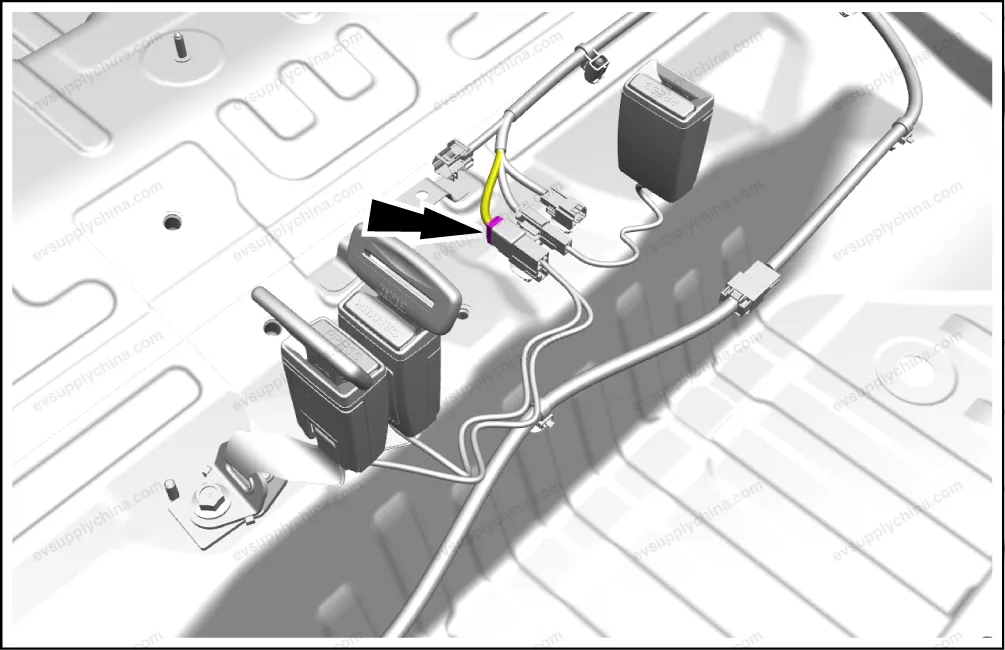

- Disconnect 1 connector of the right rear seat belt buckle assembly.

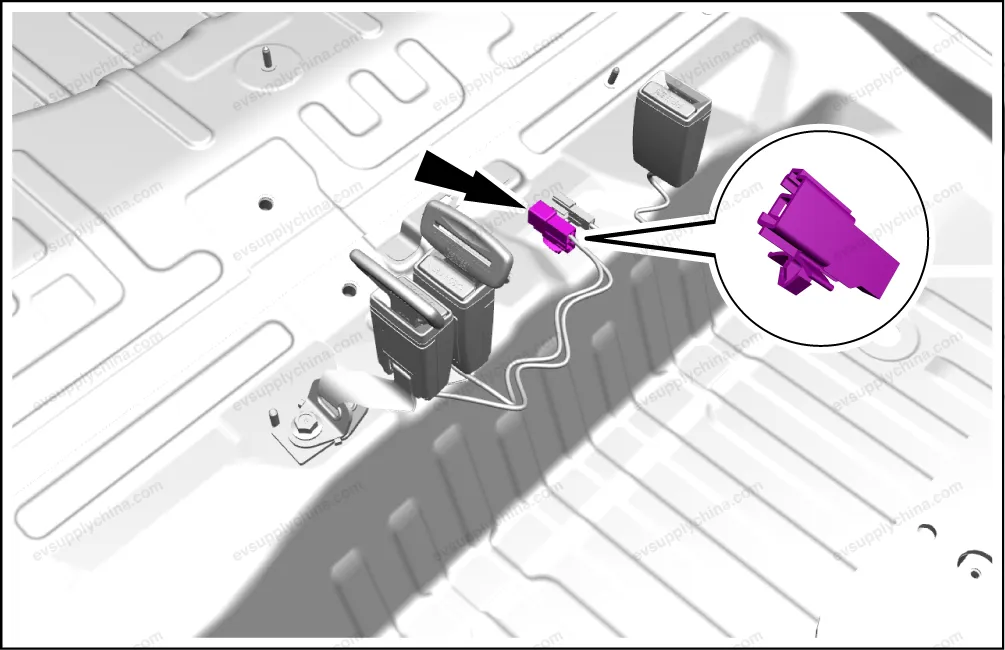

- Detach the wiring harness clip from the right rear seat belt buckle assembly.

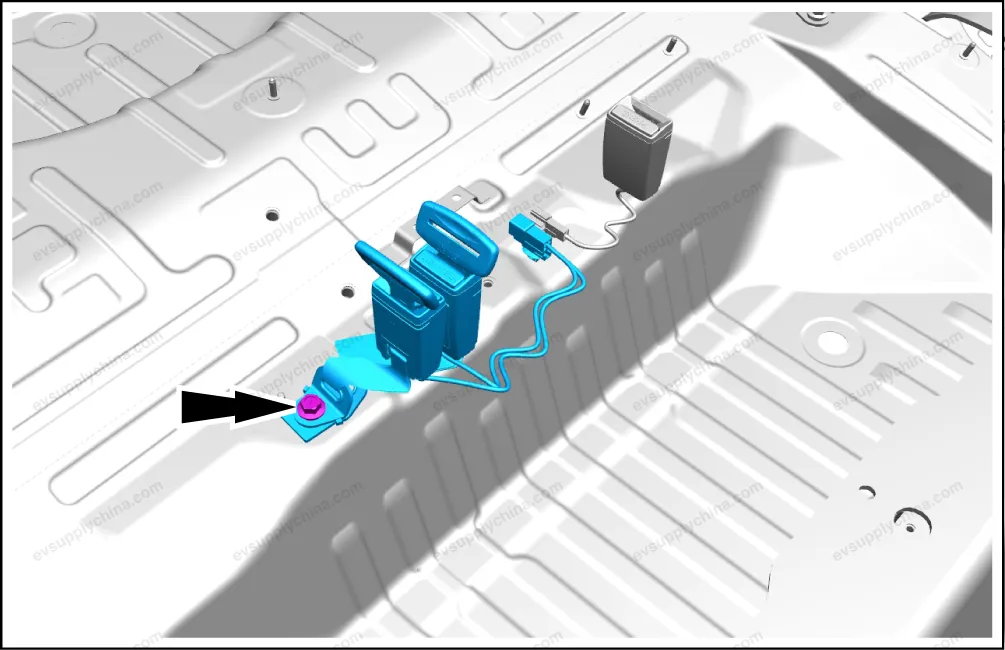

- Remove 1 fixing bolt from it, and take out the right rear seat belt buckle assembly.
Installation
- The installation steps are opposite to the removal steps.
Left Rear Seat Belt Assembly - Removal and Installation
Removal
- Remove the left C-pillar upper guard assembly. See Left C-Pillar Upper Guard Assembly - Removal and Installation
- Remove 1 fixing bolt from the left rear seat belt assembly.
- Disconnect 1 connector of the left rear seat belt assembly.
- Remove the left rear seat belt assembly.
- Remove 1 fixing bolt.
- Remove 1 fixing bolt, and take out the left rear seat belt assembly.
Caution When disconnecting the connector, insert the small screwdriver wrapped with tape into the connector slot to pry up the striker, and then pull out the connector.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, check whether the seat belt is installed in place to ensure that there is no distortion or seizure.
Right rear seat belt assembly Fitment Diagram — BYD Atto 3
