OEM
BYD Atto 3

Rear and center three-point seat belt assembly

OE / Material Codes

13465330-00SC2EM-5812040
Price on requestIn Stock
Quality availability

Technical Specifications

Vehicle Model
BYD Atto 3
Steering Configuration
Left-Hand Drive & Right-Hand Drive
Category
Seats & Seatbelts

Shipping & Returns

Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Compatible Vehicles — Rear and center three-point seat belt assembly

BYDYuan PLUS/Atto 3
2024

Rear and center three-point seat belt assembly Workshop Guide — BYD Atto 3

Rear Middle Three-point Seat Belt Assembly - Removal and Installation

Removal

  1. Remove the left rear backrest assembly. See Left Rear Backrest Assembly - Removal and Installation
  2. Remove the seat belt outlet cover. See Seat Belt Outlet Cover - Removal and Installation
  3. Remove the fixed sheet metal cover on the left side of the armrest. See Fixed Sheet Metal Cover on the Right Side of the Armrest - Removal and Installation
  4. Remove the rear headrest sliding sleeve assembly. See Rear Headrest Slide Cover Components - Removal and Installation
  5. Remove the rear headrest height adjustment sliding sleeve assembly. See Sliding Sleeve Assembly of Rear Seat Headrest Height Adjustment - Removal and Installation

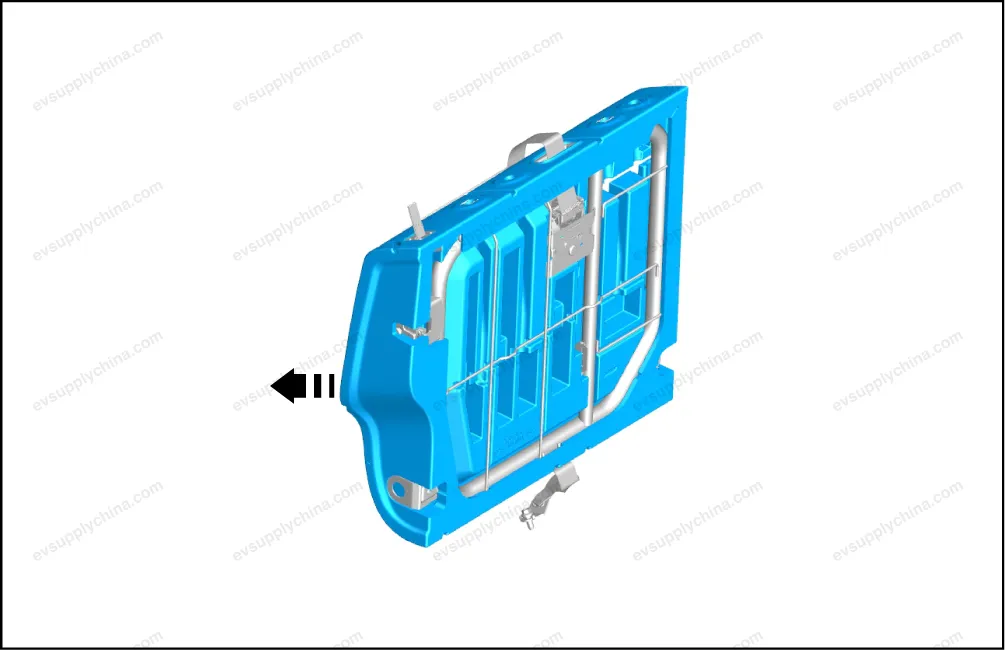

  6. Take out the left rear backrest foam.
    Rear and center three-point seat belt assembly — BYD BYD Atto 3 — OE 13465330-00, SC2EM-5812040

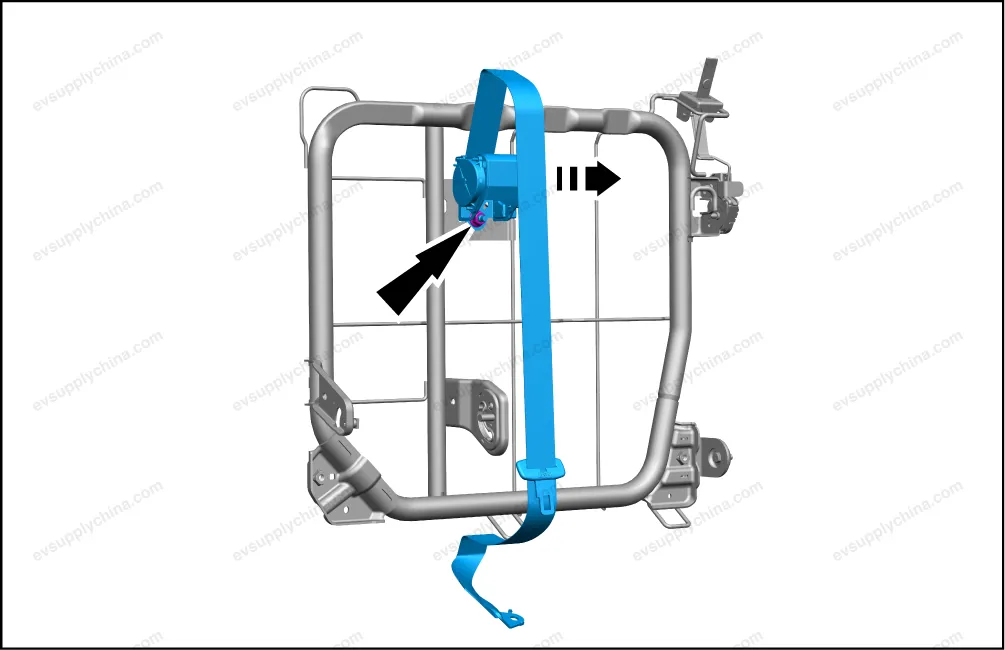

  7. Remove 1 fixing nut, and take out the rear middle three-point seat belt assembly.
    Rear and center three-point seat belt assembly — BYD BYD Atto 3 — OE 13465330-00, SC2EM-5812040

Installation

  1. The installation steps are opposite to the removal steps.

Rear Center Seat Headrest Assembly - Removal and Installation

Removal

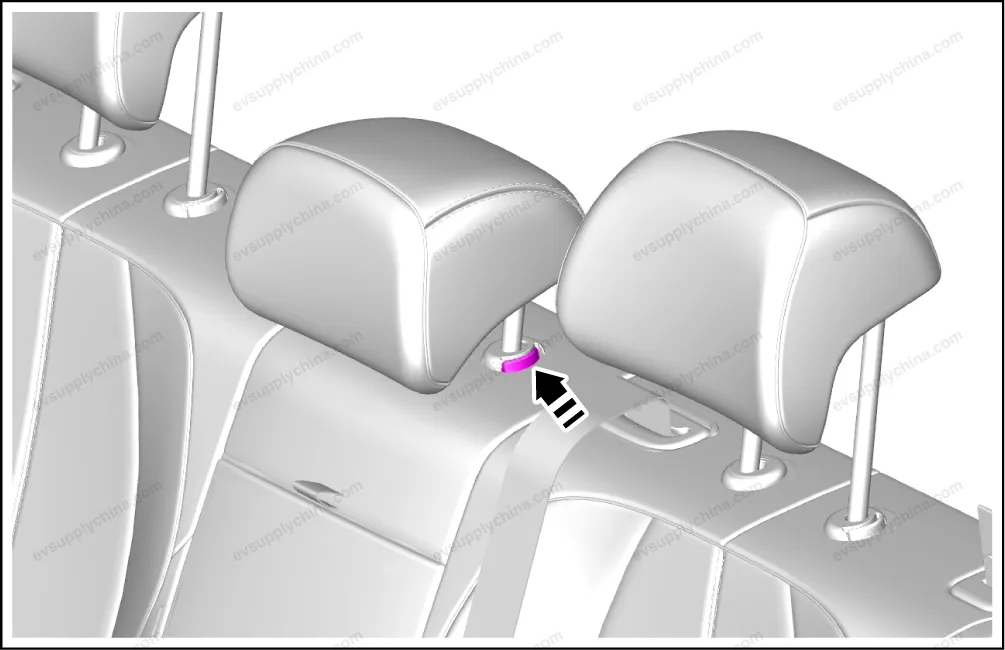

  1. Press the rear headrest height adjustment sliding sleeve components.
    Rear and center three-point seat belt assembly — BYD BYD Atto 3 — OE 13465330-00, SC2EM-5812040

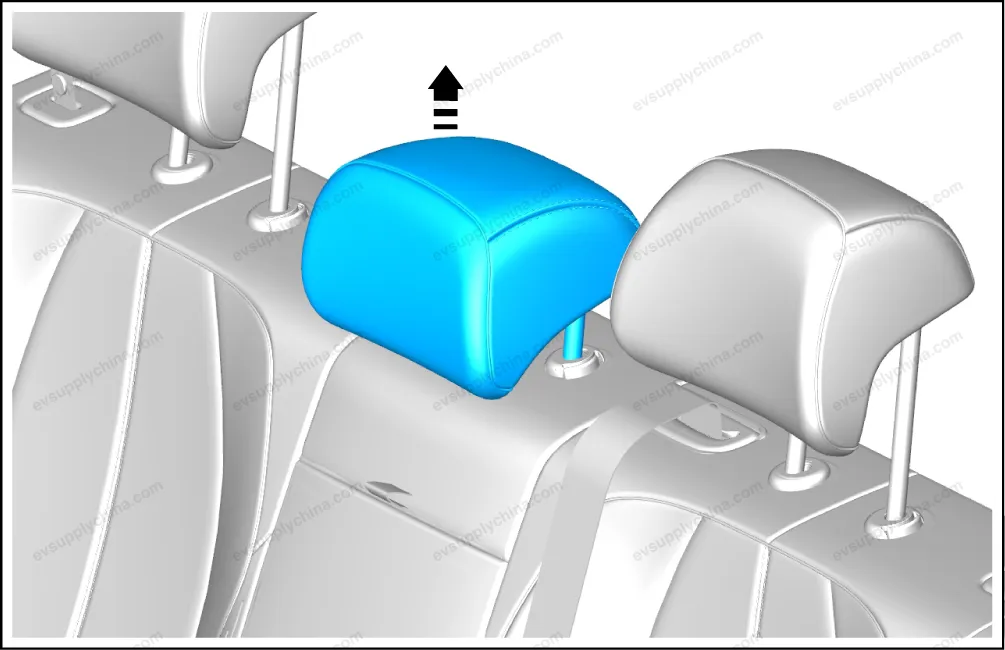

  2. Take out the rear middle headrest assembly in the direction of the arrow.
    Rear and center three-point seat belt assembly — BYD BYD Atto 3 — OE 13465330-00, SC2EM-5812040

Installation

  1. The installation steps are opposite to the removal steps.

Rear Seat Center Armrest Assembly - Removal and Installation

Removal

  1. Remove Armrest Right Fixing Cover Panel. See Armrest Right Fixing Cover Panel - Removal and Installation

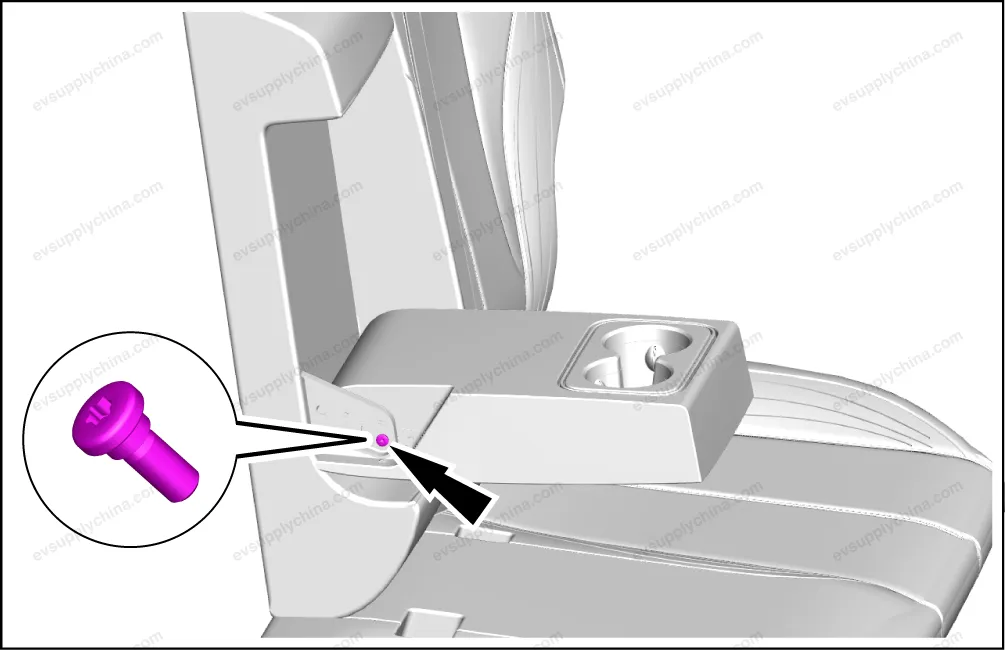

  2. Remove 1 fixing screw from the rear seat middle armrest assembly.
    Rear and center three-point seat belt assembly — BYD BYD Atto 3 — OE 13465330-00, SC2EM-5812040

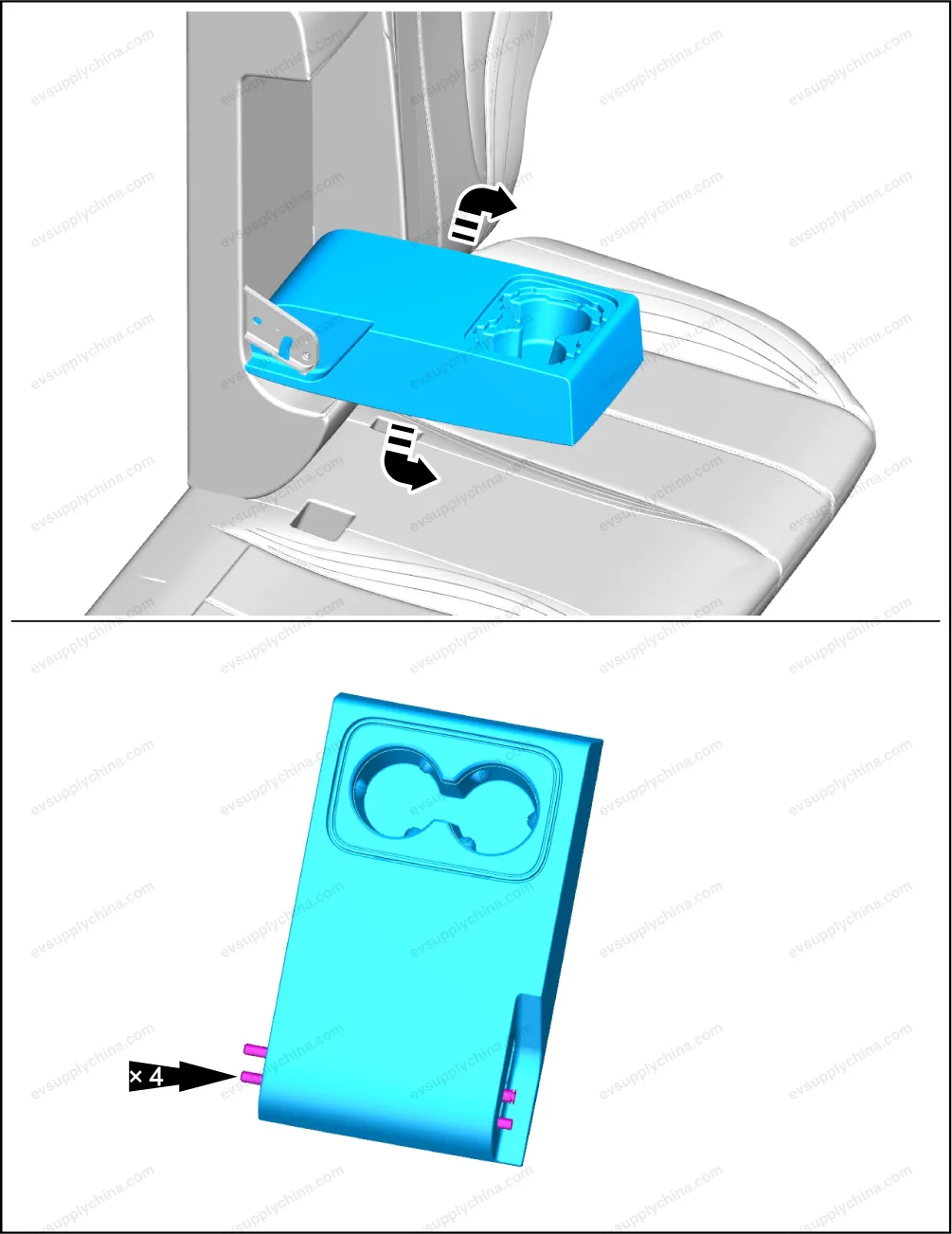

  3. Take out the rear seat middle armrest assembly.
    Rear and center three-point seat belt assembly — BYD BYD Atto 3 — OE 13465330-00, SC2EM-5812040

Installation

  1. The installation steps are opposite to the removal steps.

Rear and center three-point seat belt assembly Fitment Diagram — BYD Atto 3

Fitment Diagram — Rear and center three-point seat belt assembly

Other parts in this assembly

Right front seat belt assemblyRight rear seat belt assemblyRight rear seat belt buckle assemblyLeft rear seat belt buckle assemblyLeft rear seat belt assembly
