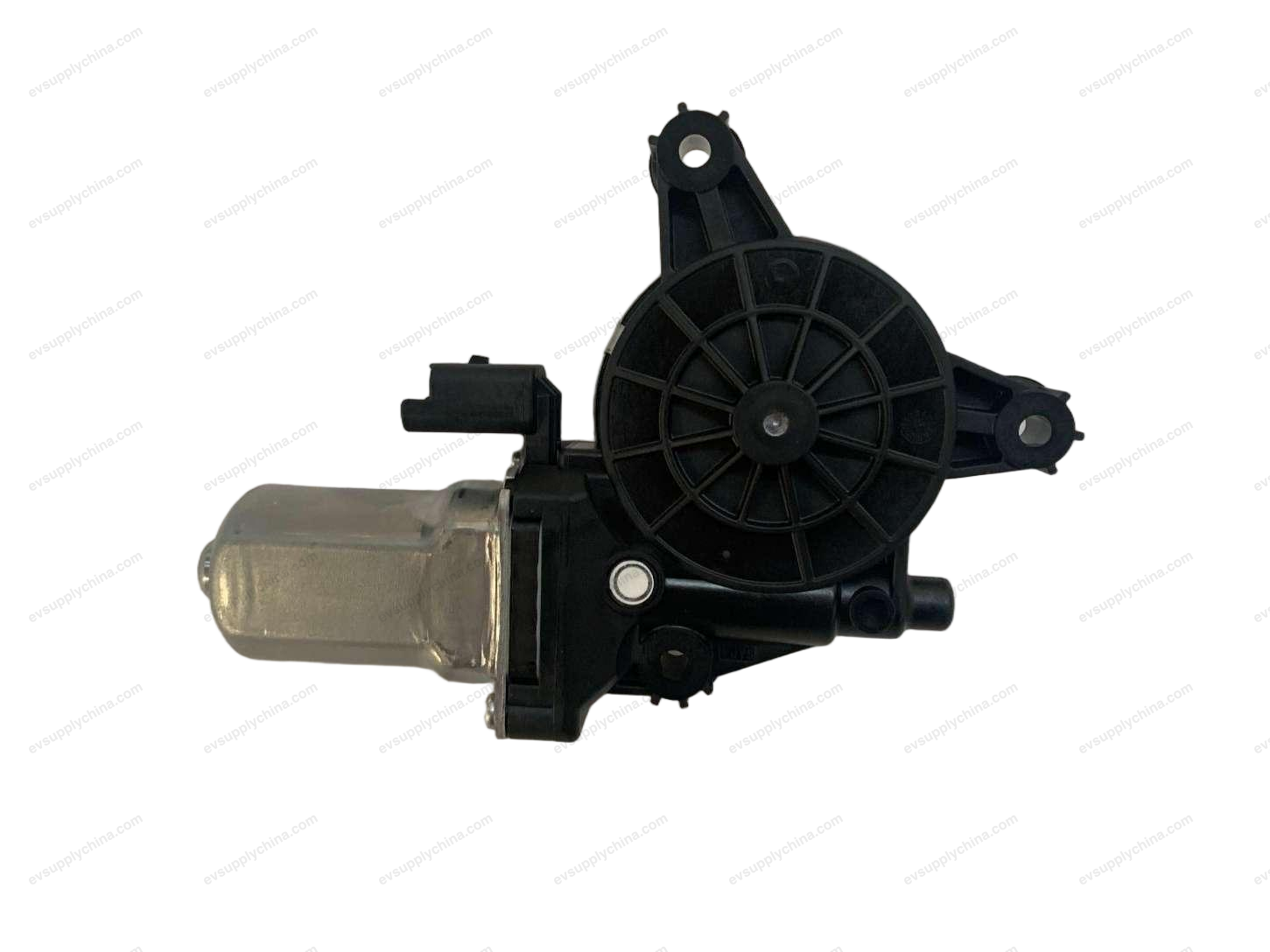

Right rear door window regulator motor
OE / Material Codes
13189342-00SC2E-3746400BTechnical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Window Regulators
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right rear door window regulator motor
Right rear door window regulator motor Workshop Guide — BYD Atto 3
Right Rear Window Regulator Motor - Removal and Installation
Removal
- Remove the right rear window regulator bracket assembly. See Right Rear Window Regulator Bracket Assembly - Removal and Installation
- Remove 3 fixing bolts, and take out the right rear window regulator motor.
Installation
- Follow the removal steps in reverse order to install.
Caution After the installation, conduct a functional test on the rear window regulator motor.
Left Rear Window Regulator Motor - Removal and Installation
Removal
- Remove the left rear window regulator bracket assembly. See Left Rear Window Regulator Bracket Assembly - Removal and Installation

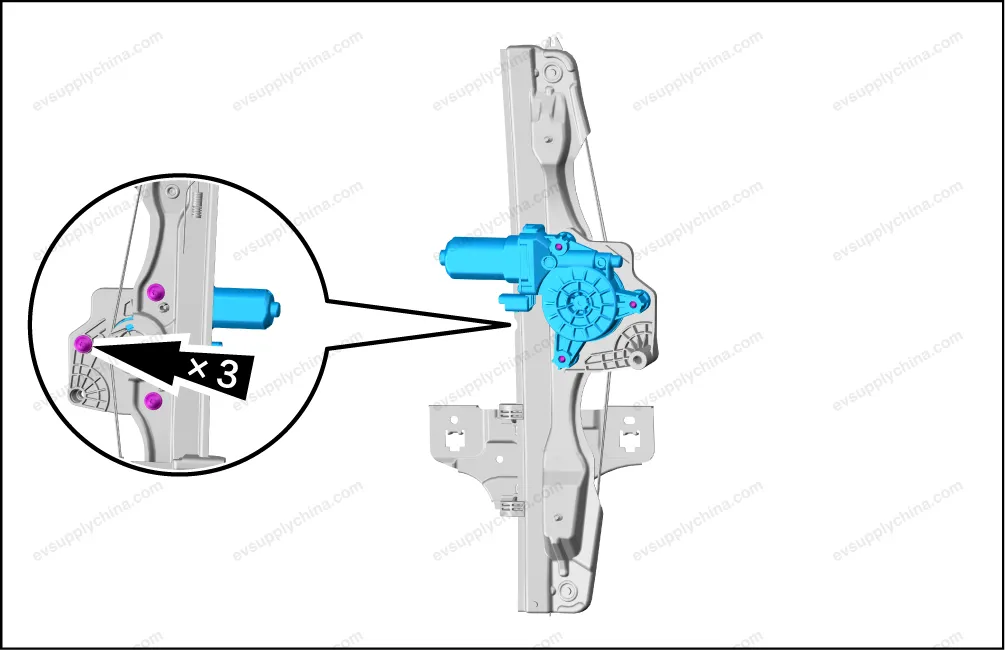

- Remove 3 fixing bolts, and take out the left rear window regulator motor.
Installation
- Follow the removal steps in reverse order to install.
Caution After the installation, conduct a functional test on the rear window regulator motor.
Right Rear Window Regulator Bracket Assembly - Removal and Installation
Removal
- Remove the right rear door glass assembly. See Right Rear Door Glass Assembly - Removal and Installation
- Disconnect 1 connector of the right rear window regulator bracket assembly.
- Remove the right rear window regulator bracket assembly.
- Remove 1 fixing bolt.
- Remove 2 fixing nuts, and take out the right rear window regulator bracket assembly.
Installation
- The installation steps are opposite to the removal steps.
Caution On completion of installation, test the rear window regulator bracket assembly for normal function.
