OEMAftermarket
BYD Atto 3
Rear bumper lower right support bracket assembly
OE / Material Codes
13186484-00SC2E-2804430$8USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Bumpers
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Rear bumper lower right support bracket assembly
BYDYuan PLUS/Atto 3
2022–2025Rear bumper lower right support bracket assembly Workshop Guide — BYD Atto 3
Rear Bumper Lower Right Support Bracket Assembly - Removal and Installation
Removal
- Remove the rear bumper assembly. See Rear Bumper Assembly - Removal and Installation

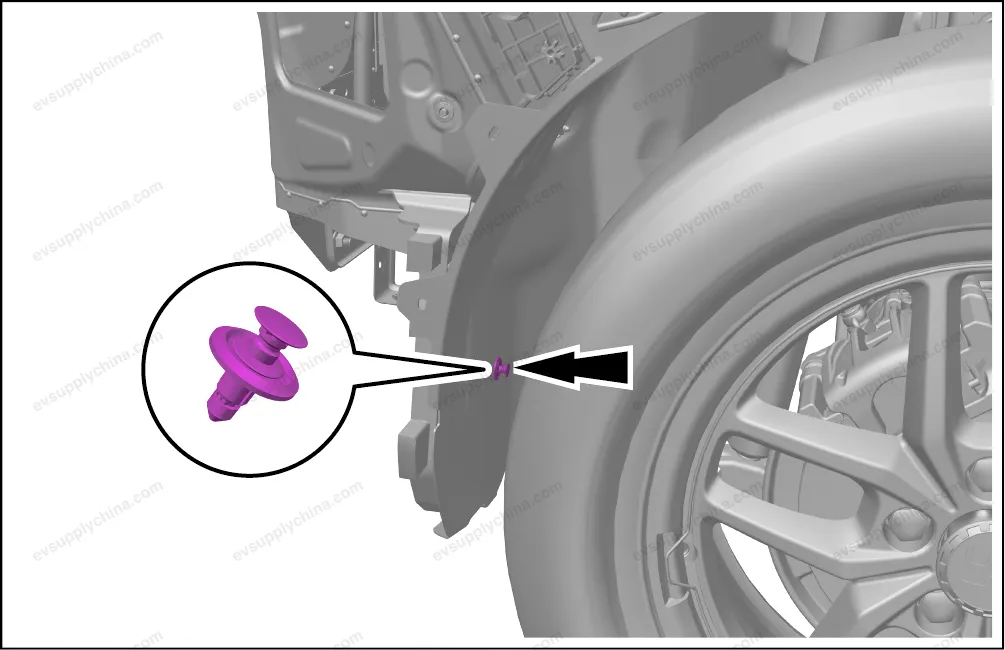

- Remove 1 fixing clip of the support bracket assembly on the lower right of the rear bumper.

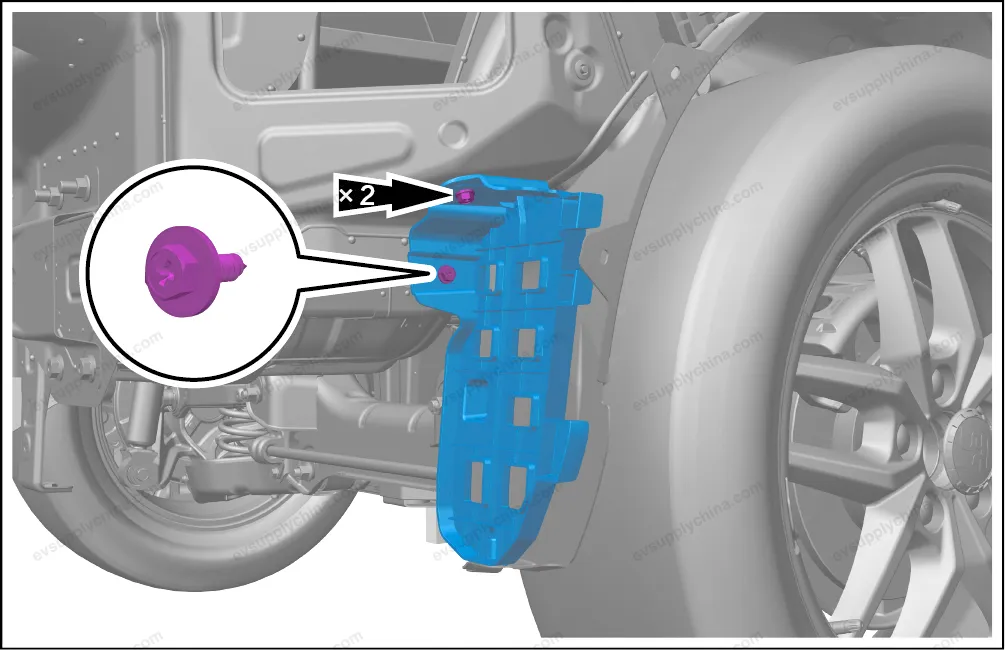

- Remove 2 fixing screws and take out the support bracket assembly on the lower right of the rear bumper.
Installation
- The installation steps are opposite to the removal steps.
Rear Bumper Lower Left Support Bracket Assembly - Removal and Installation
Removal
- Remove the rear bumper assembly. See Rear Bumper Assembly - Removal and Installation

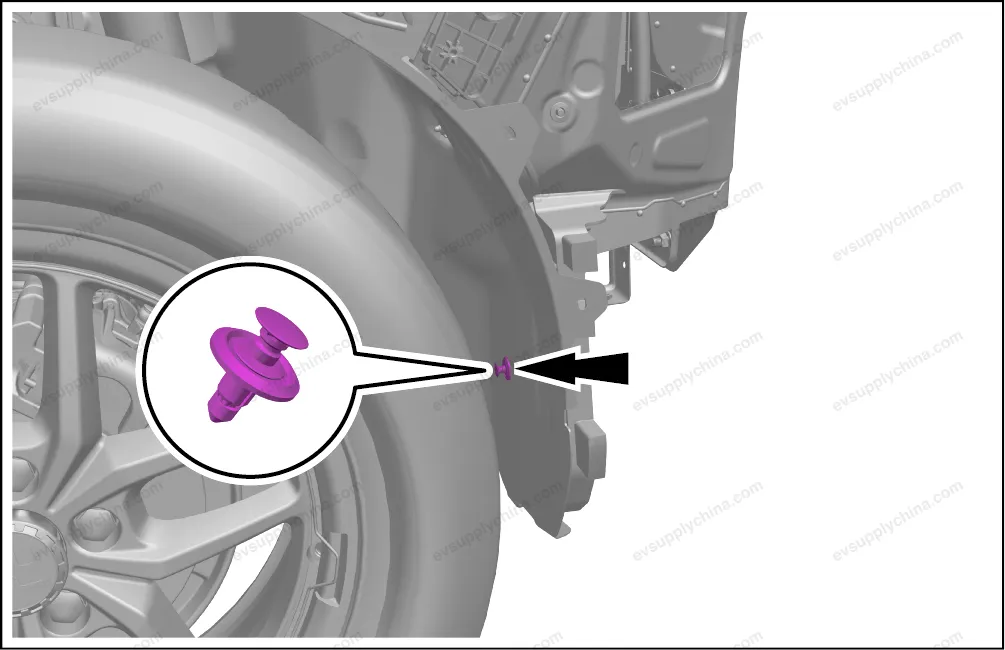

- Remove 1 fixing clip of the left lower support bracket assembly of the rear bumper.

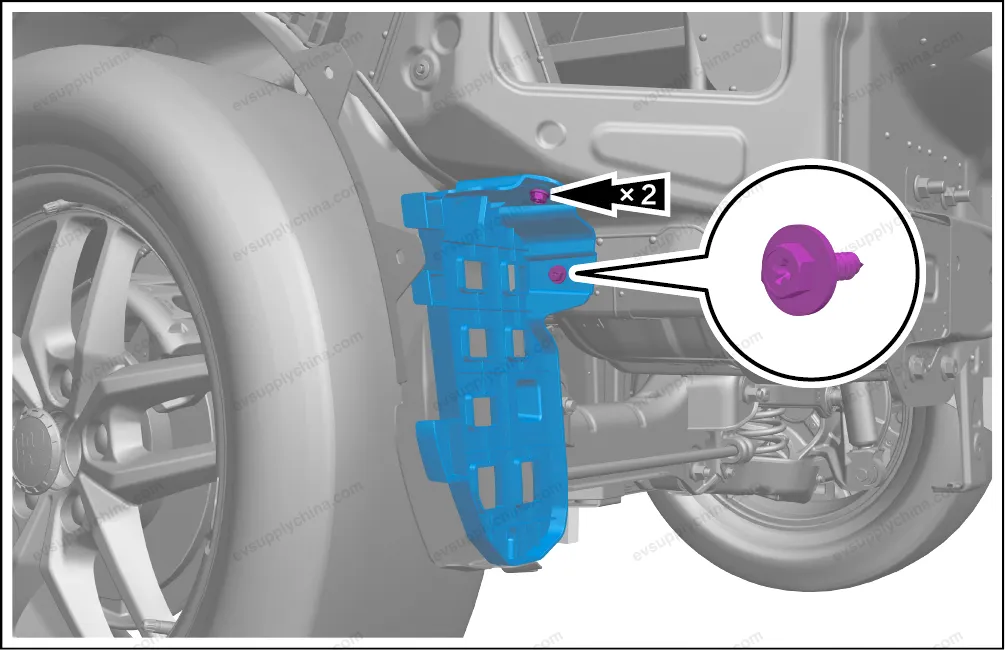

- Remove 2 fixing screws and take out the support bracket assembly on the lower left of the rear bumper.
Installation
- The installation steps are opposite to the removal steps.
Rear Bumper Right Rear Bracket Assembly - Removal and Installation
Removal
- Remove the rear bumper assembly. See Rear Bumper Assembly - Removal and Installation

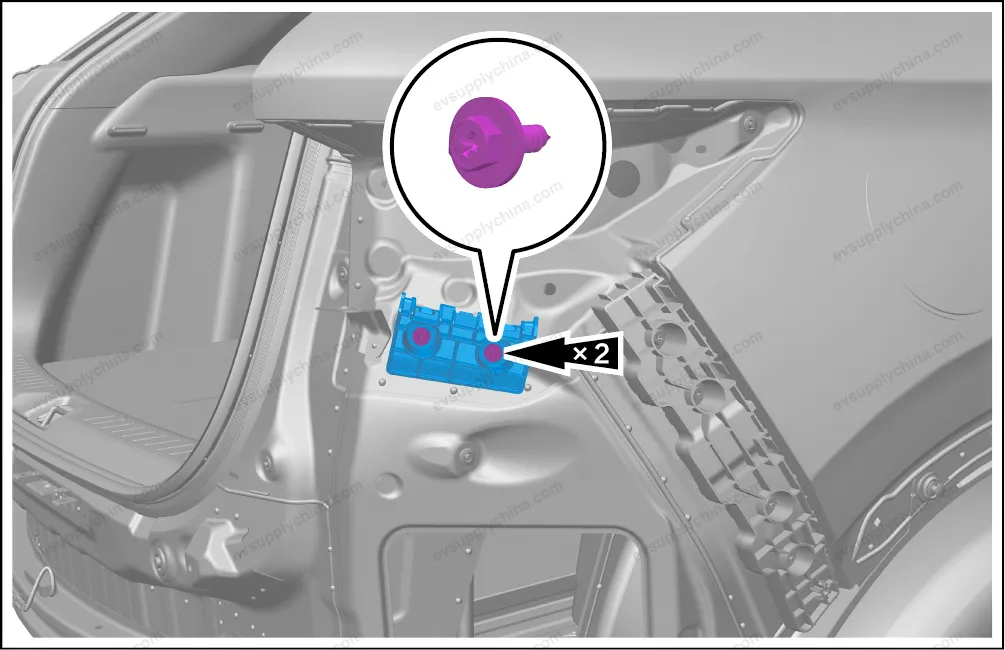

- Remove 2 fixing screws from the right rear bracket assembly of rear bumper.

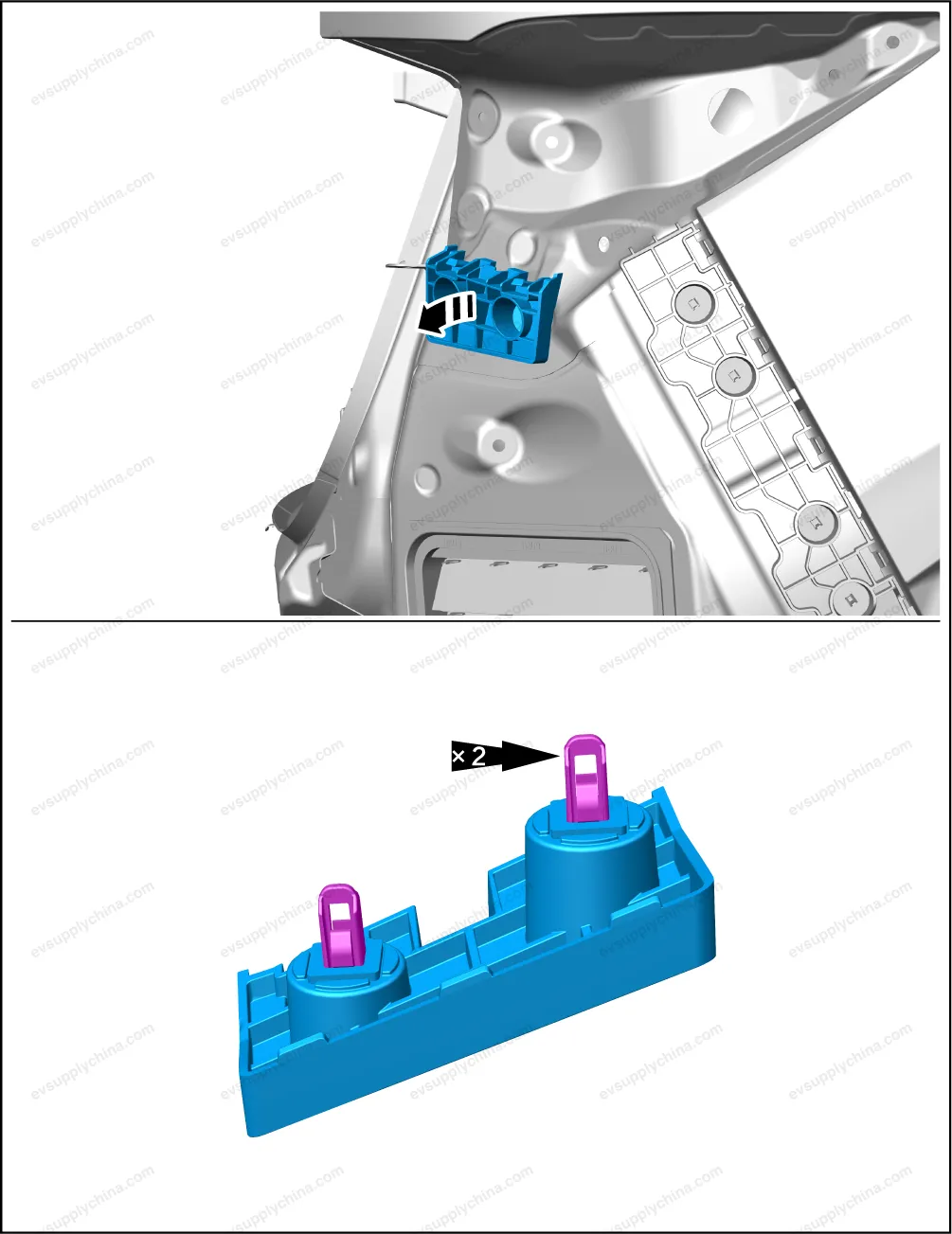

- Detach 2 fixing clips, and take out the right rear bracket assembly of rear bumper.
Installation
- The installation steps are opposite to the removal steps.
