Pressure and temperature sensor
OE / Material Codes
15543879-00UFEA-8114460Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Sensors & Cameras
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Pressure and temperature sensor Workshop Guide — BYD Atto 3
Pressure & Temperature Sensor - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Recover the refrigerant See Recovery and Filling of Refrigerant

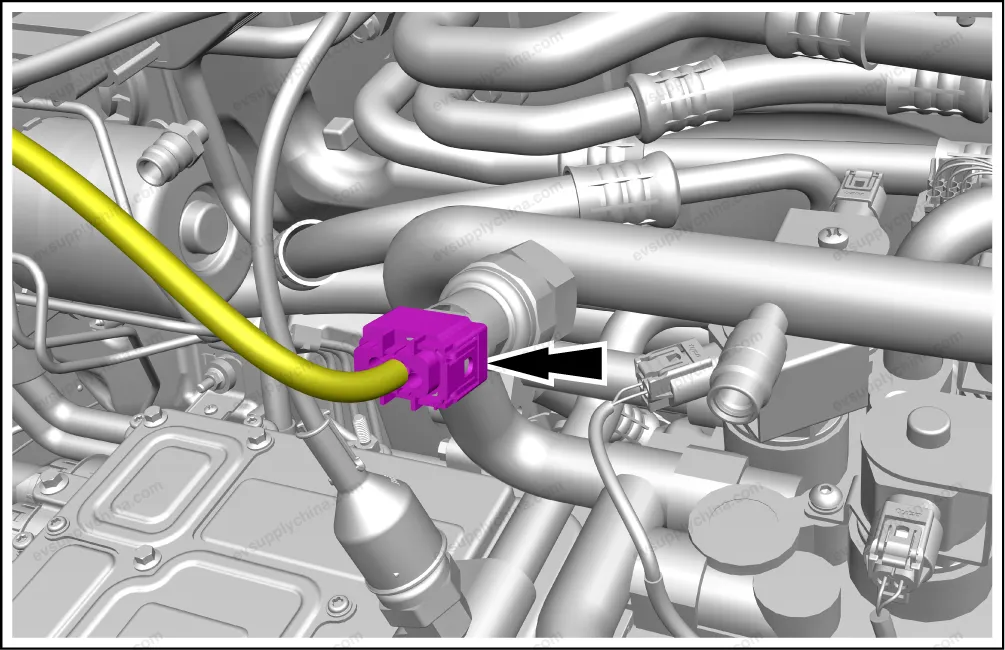

- Disconnect one connector of pressure & temperature sensor.

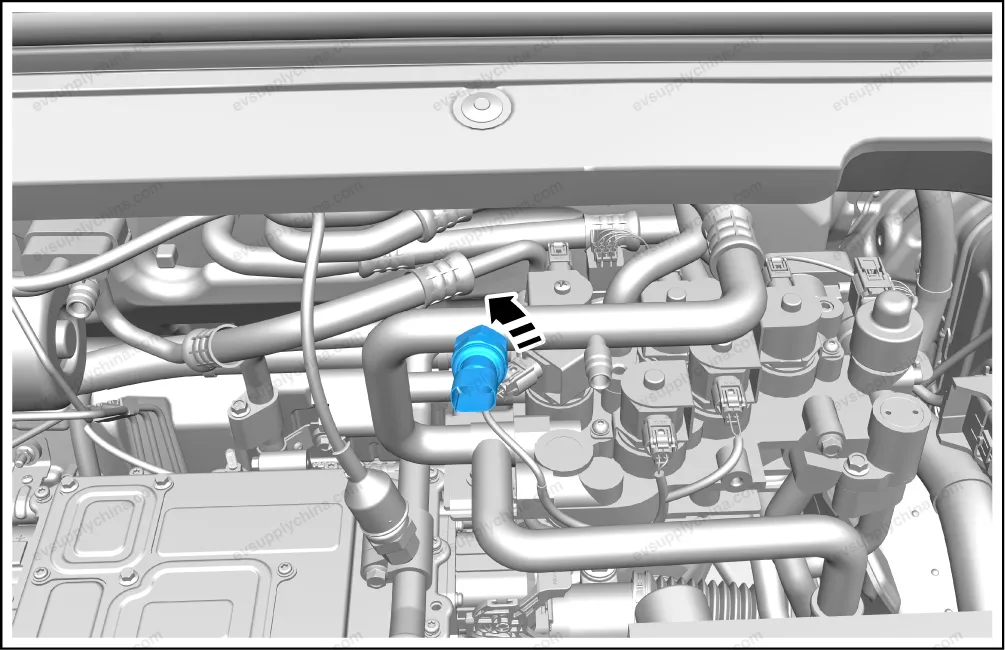

- Remove the pressure & temperature sensor.
Installation
- Follow the removal steps in reverse order to install.
Caution For the installation, all “O-rings” of the pipeline must be replaced, and refrigerant oil shall be applied on the surface of the seal rings and the seal rings shall be connected according to the stipulated torque.
Pressure Sensor - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Recover the refrigerant See Recovery and Filling of Refrigerant

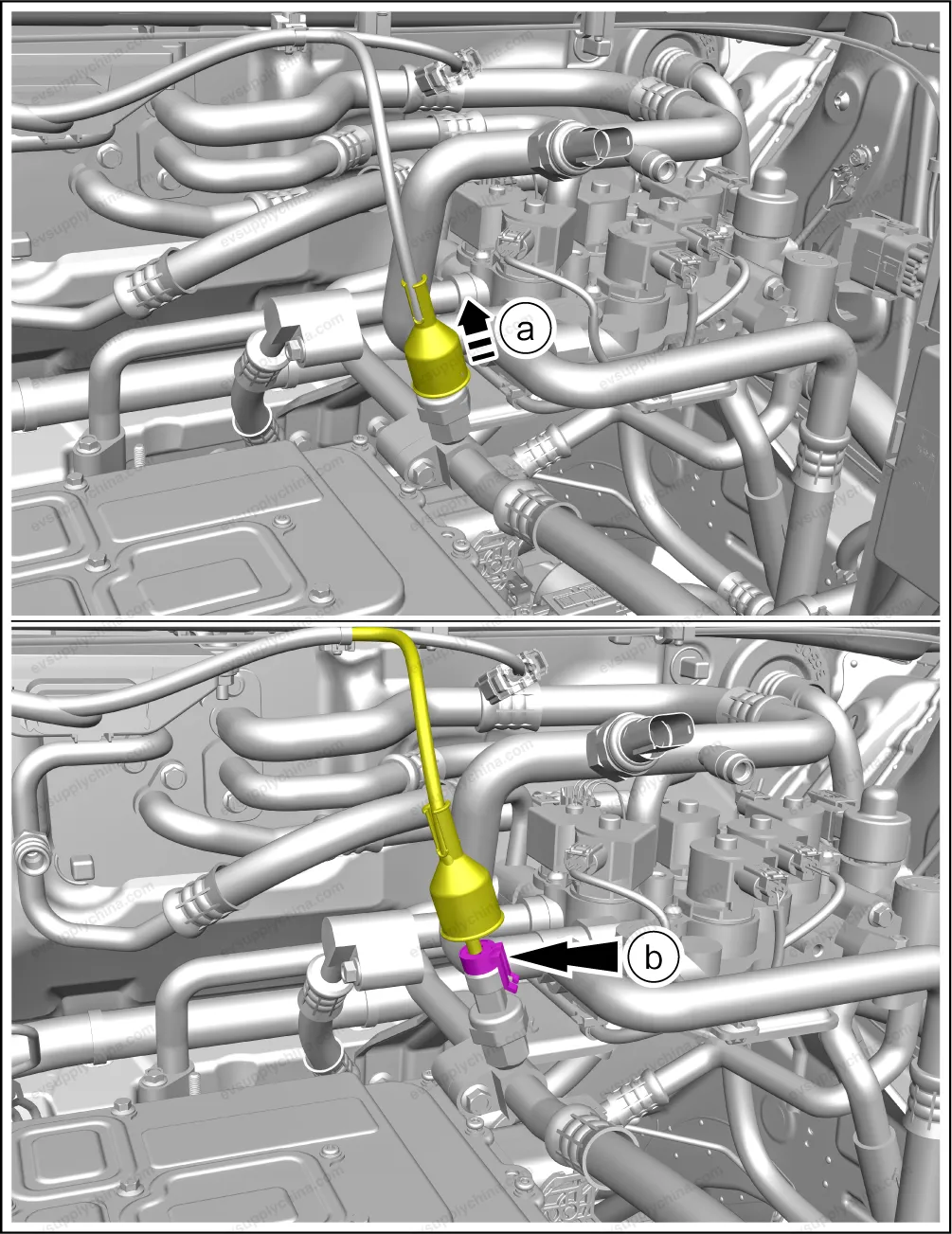

- Disconnect 1 connector of pressure sensor.
- Disconnect the rubber cover of pressure sensor.
- Disconnect 1 connectors.

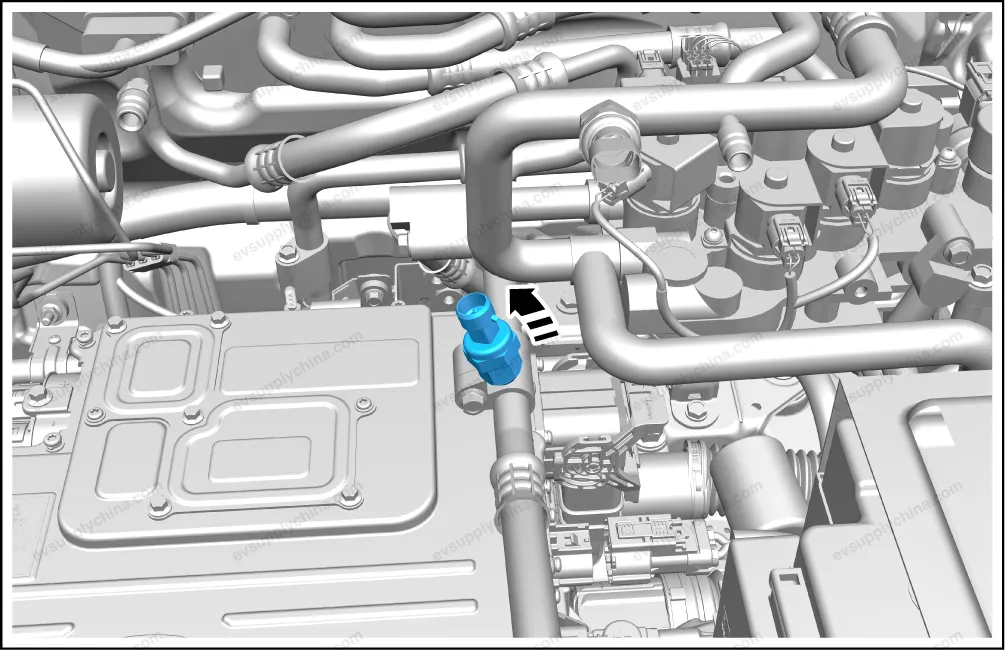

- Remove the pressure sensor.
Install
- The installation is performed in reverse order of removal.
Caution For the installation, all “O-rings” of the pipeline must be replaced, and refrigerant oil shall be applied on the surface of the seal rings and the seal rings shall be connected according to the stipulated torque.
Plate Temperature Sensor - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Remove the plate end temperature sensor.

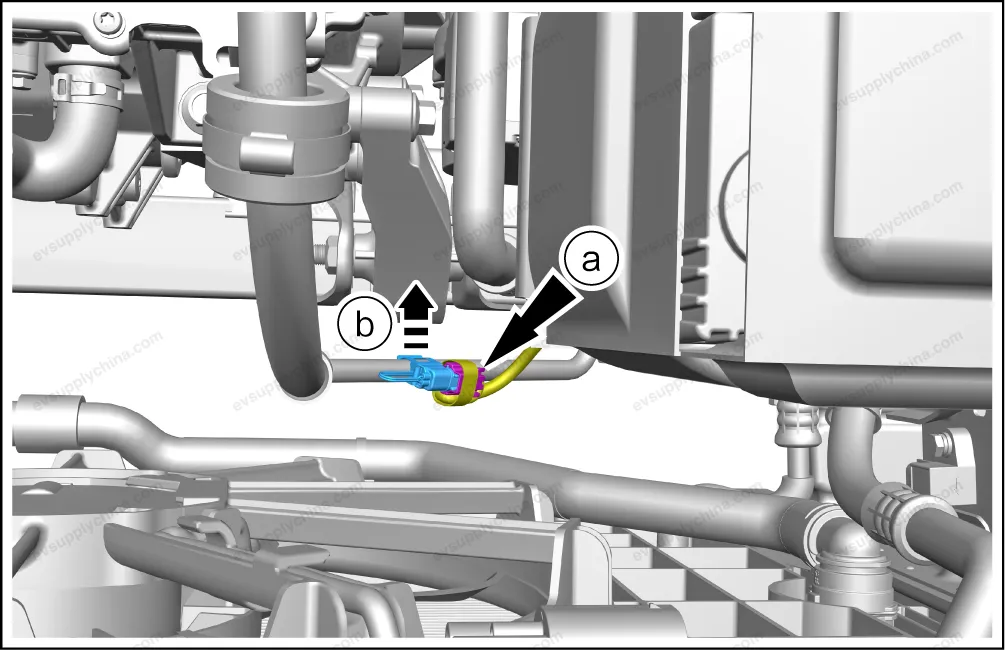

- Disconnect 1 connectors.
- Detach the plate end temperature sensor from the compressor discharge pipe assembly 1, and take it out.
Install
- The installation is performed in reverse order of removal.
