OEMPremium
BYD Atto 3

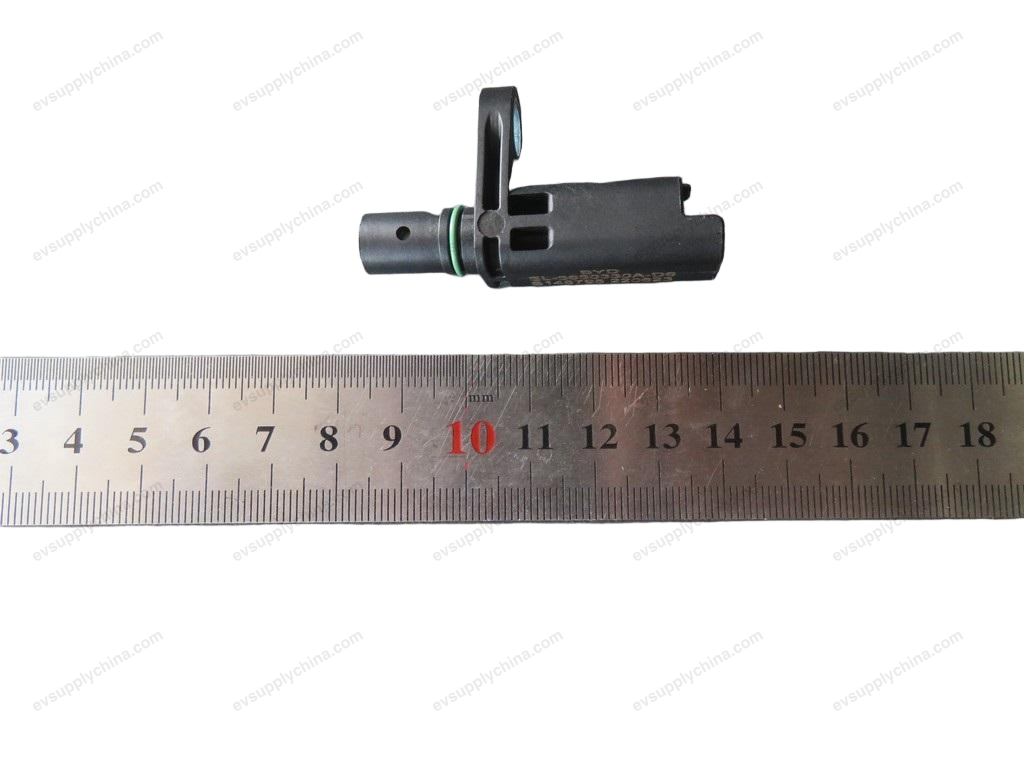

Left rear wheel speed sensor
OE / Material Codes
13640051-00EL-3630330A-D6$6USD
In StockTechnical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Sensors & Cameras
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left rear wheel speed sensor
BYDSong PLUS New Energy EV
2021–2024BYDSong Plus New Energy DM-i
2021–2024BYDSong Pro New Energy DM-i
2022–2024BYDYuan PLUS/Atto 3
2022–2023BYDHan DM-i
2022BYDHan EV
2022–2024BYDTang New Energy EV
2022–2024BYDYuan Pro
2023BYDSong L EV
2024BYDSeal DM-i
2024Left rear wheel speed sensor Workshop Guide — BYD Atto 3

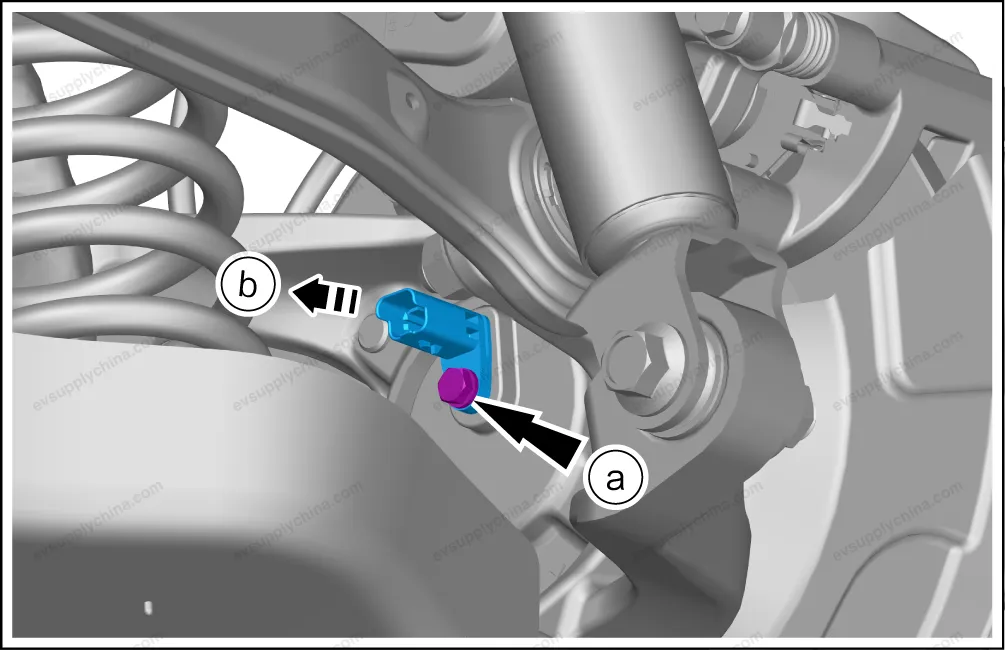

Rear Left Wheel Speed Sensor - Removal and Installation
Removal
- Power off the low-voltage electrical system. Refer to Power-off and Power-on of Low Voltage Electrical System
- Lift the vehicle.

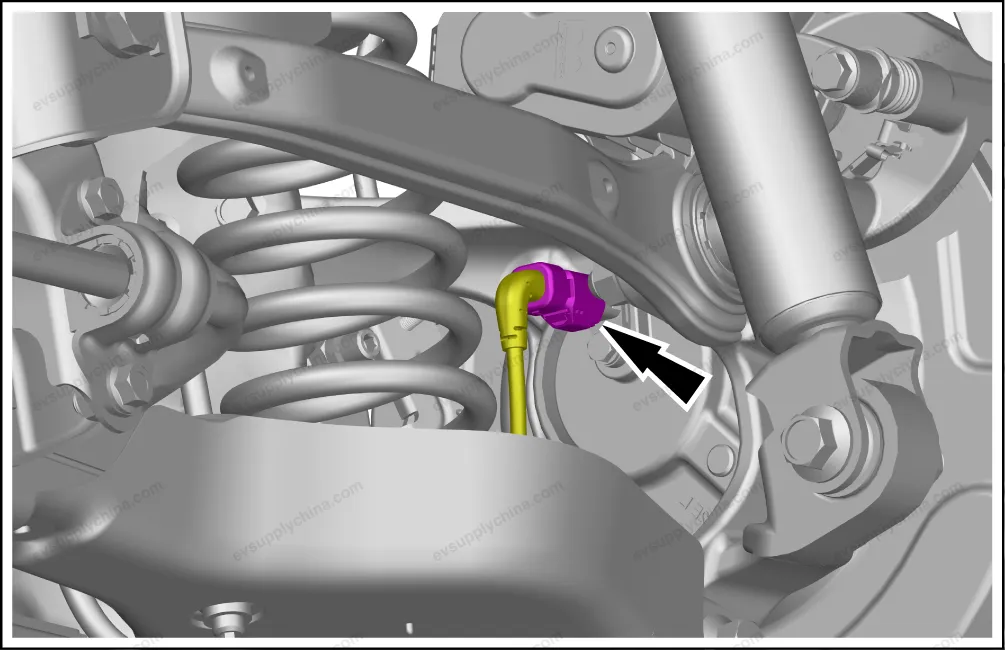

- Disconnect 1 connector from the rear left wheel speed sensor.
- Remove 1 fixing bolt and take out the rear left wheel speed sensor.
Installation
- Install it in the reverse order of removal.

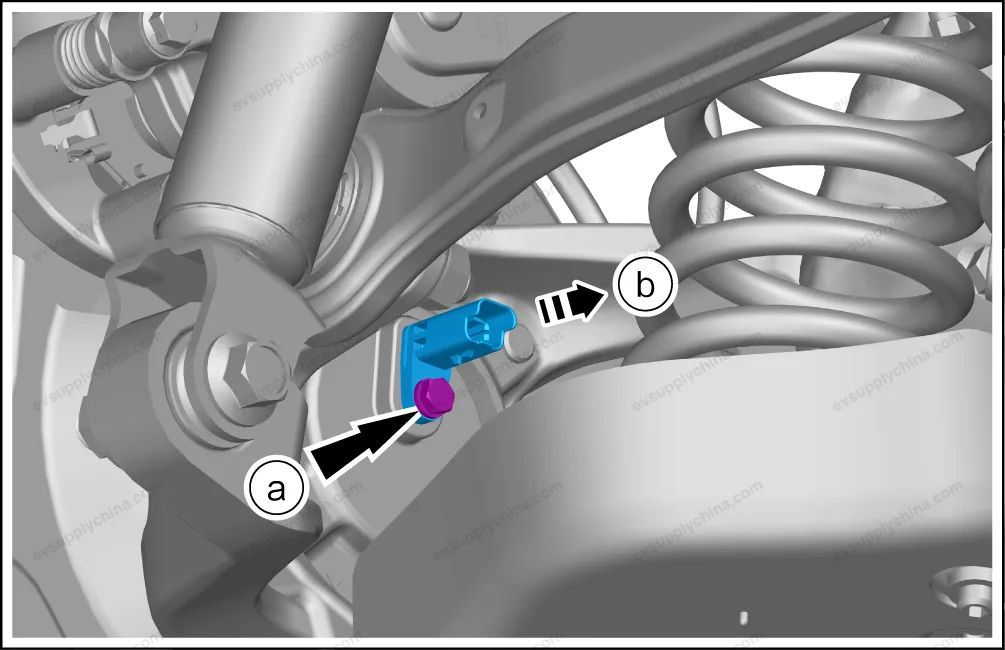

Right Rear Wheel Speed Sensor - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
- Lift the vehicle.

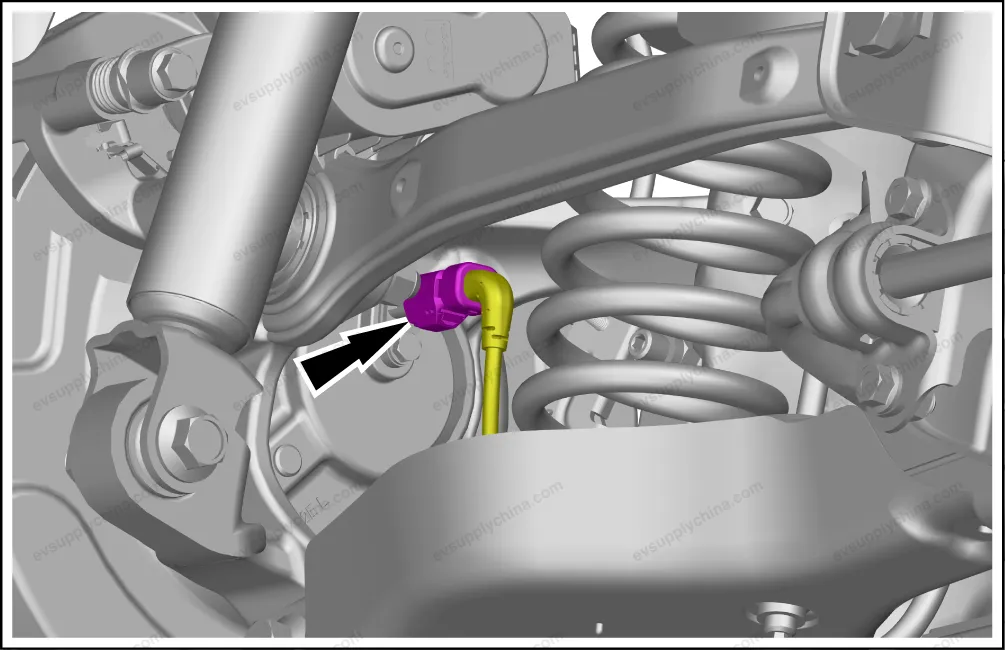

- Disconnect 1 connector of the right rear wheel speed sensor.
- Remove 1 fixing bolt, and take out the right rear wheel speed sensor.
Installation
- The installation steps are opposite to the removal steps.
