OEM
BYD Atto 3

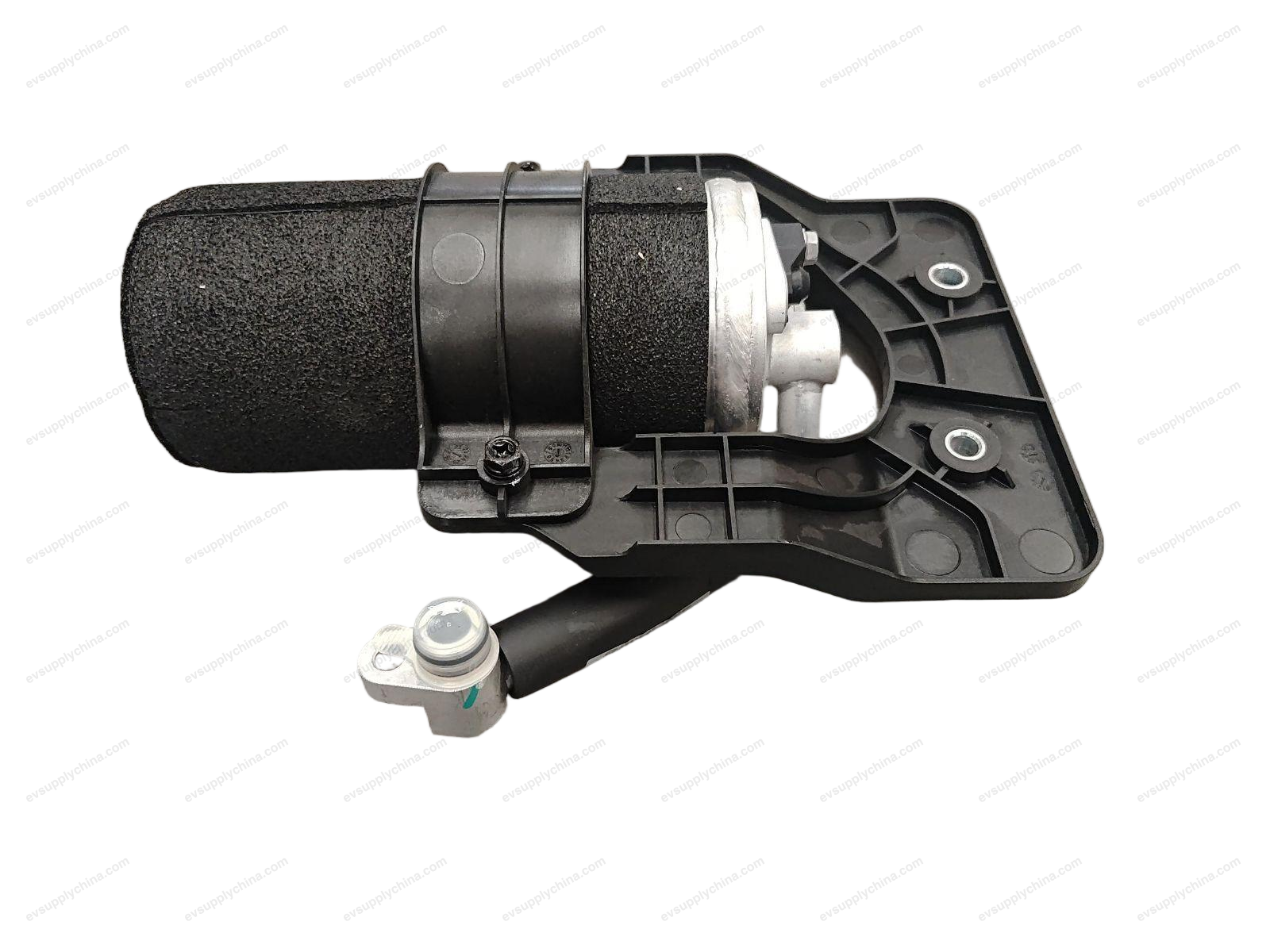

Gas-liquid separator assembly
OE / Material Codes
13914092-00SC2ES-8109300$54USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Radiator & Cooling
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Gas-liquid separator assembly Workshop Guide — BYD Atto 3
Gas-liquid Separator Assembly - Removal and Installation
Removal
- Remove compressor discharge pipe assembly 3. See Compressor Discharge Pipe Assembly 3 - Removal and Installation

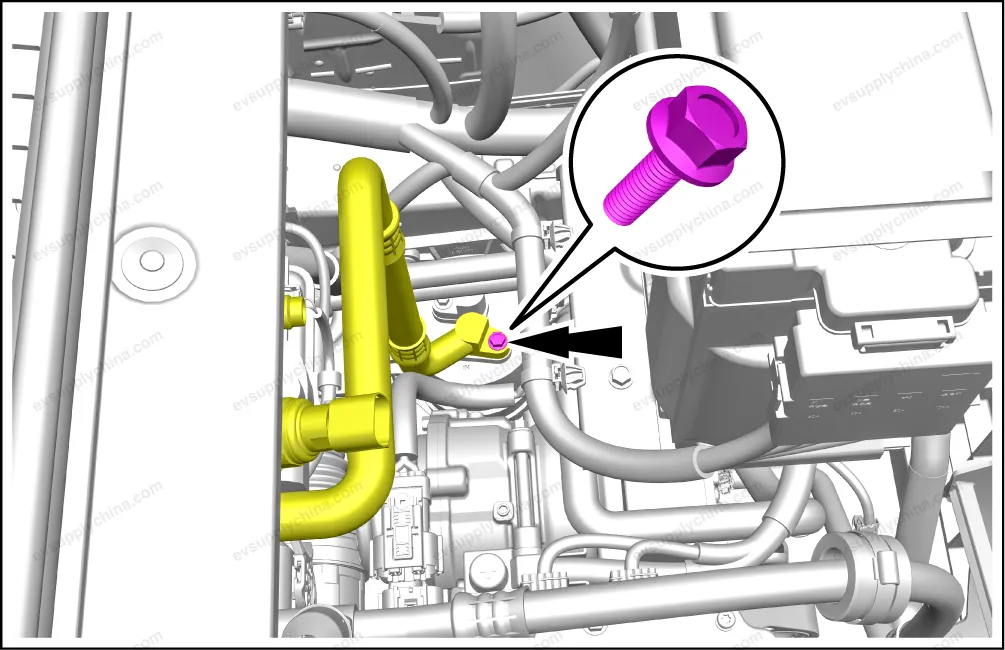

- Remove 1 fixing bolt, and detach the refrigeration tube assembly 4 from the gas-liquid separator assembly.

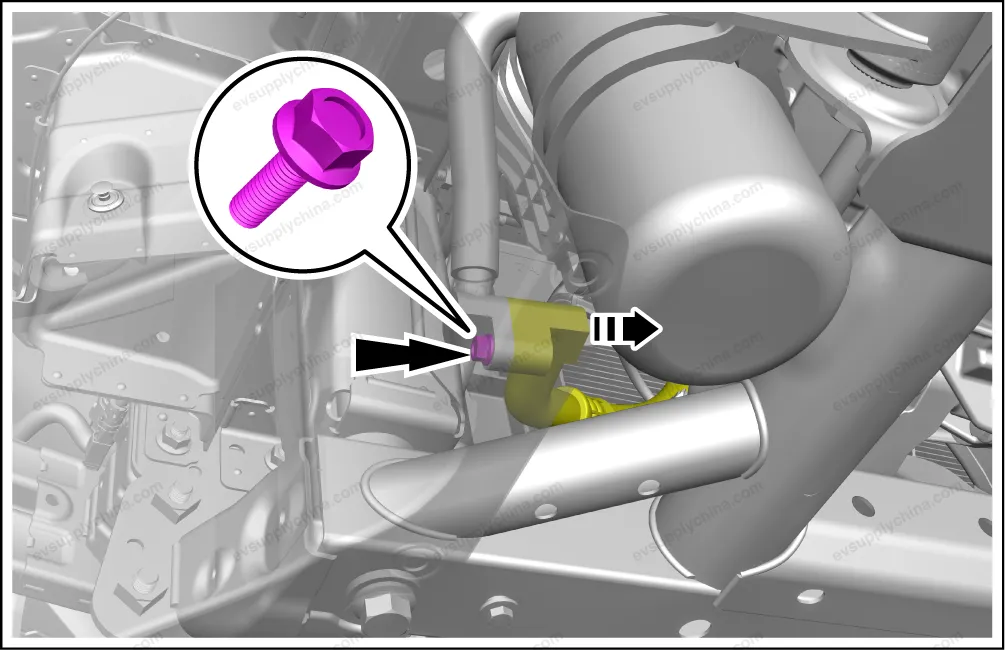

- Remove 1 fixing bolt, and detach the compressor suction pipe assembly 1 from the gas-liquid separator assembly.

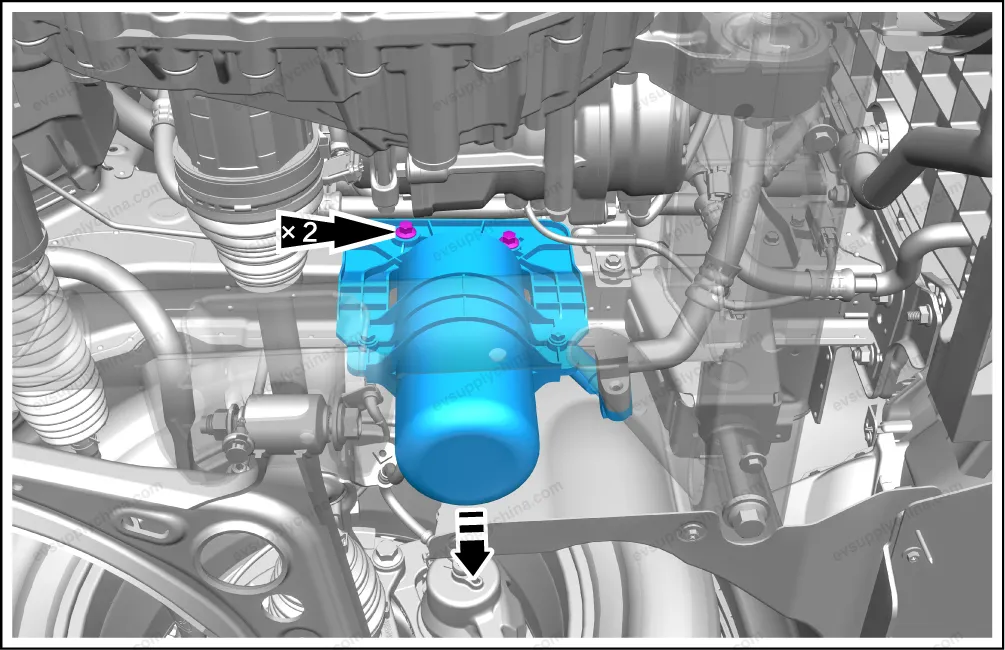

- Remove 2 fixing bolts, and take out the gas-liquid separator assembly.
Installation
- The installation steps are opposite to the removal steps.
Caution For the installation, all “O-rings” of the pipeline must be replaced, and refrigerant oil shall be applied on the surface of the seal rings and the seal rings shall be connected according to the stipulated torque.
