BYD Atto 3
Front bumper left air intake II
OE / Material Codes
13201622-00SC2E-2803812$7USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Bumpers
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Front bumper left air intake II
BYDYuan PLUS/Atto 3
2022–2025Front bumper left air intake II Workshop Guide — BYD Atto 3
Left Air Inlet I of Front Bumper - Removal and Installation
Removal
- Remove the left front wheel. See Wheel Assembly - Removal and Installation
- Remove the left front wheel eyebrow trim panel assembly. See Left Front Wheel Eyebrow Trim Panel Assembly - Removal and Installation
- Put aside part of the left front wheel mudguard assembly.

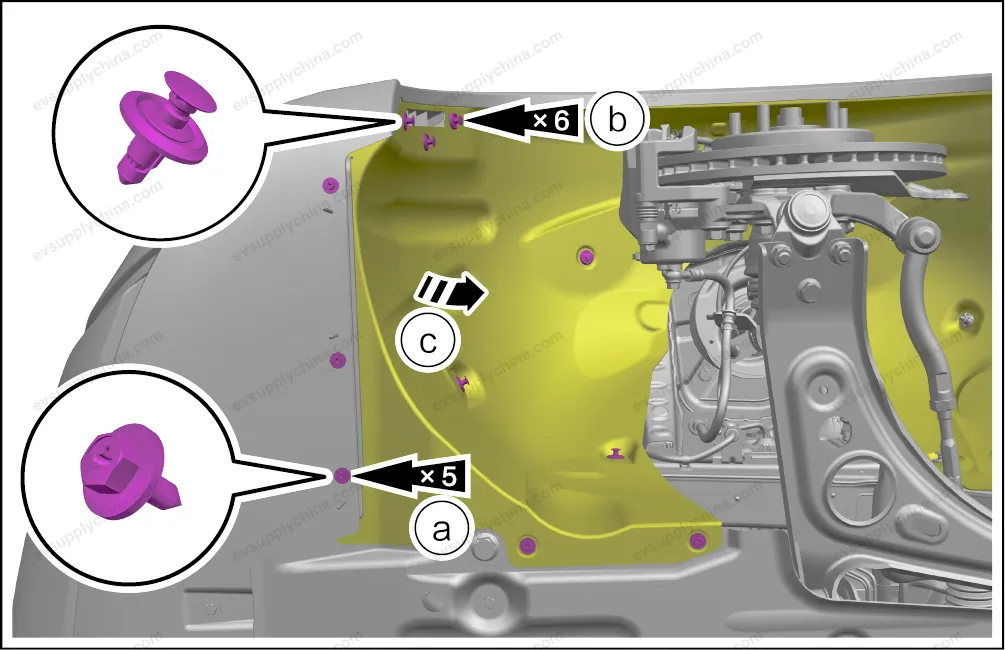

- Remove 5 fixing screws.
- Remove 6 fixing clips.
- Put aside part of the left front wheel mudguard assembly.

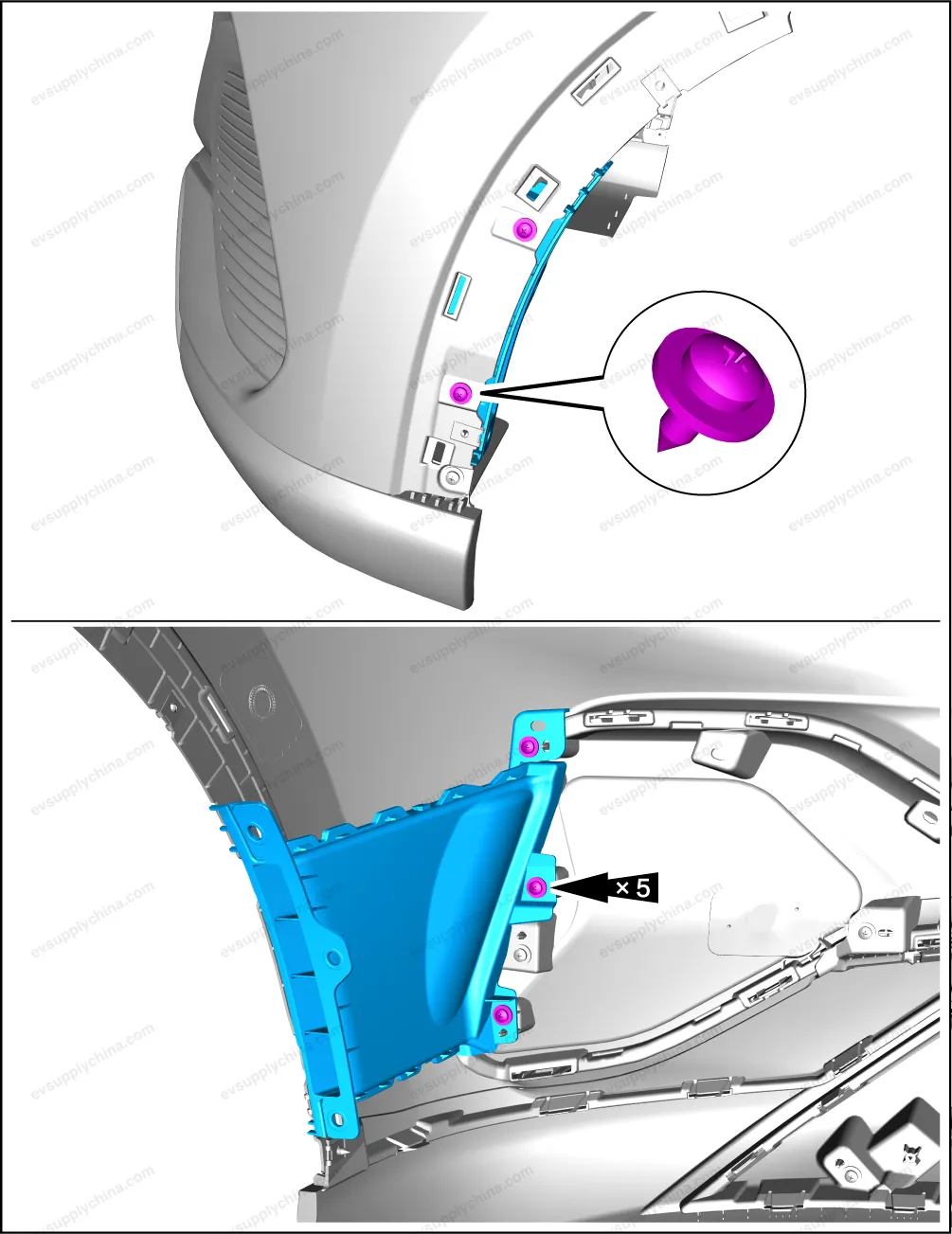

- Remove 5 fixing screw, and take out the front bumper left air inlet.

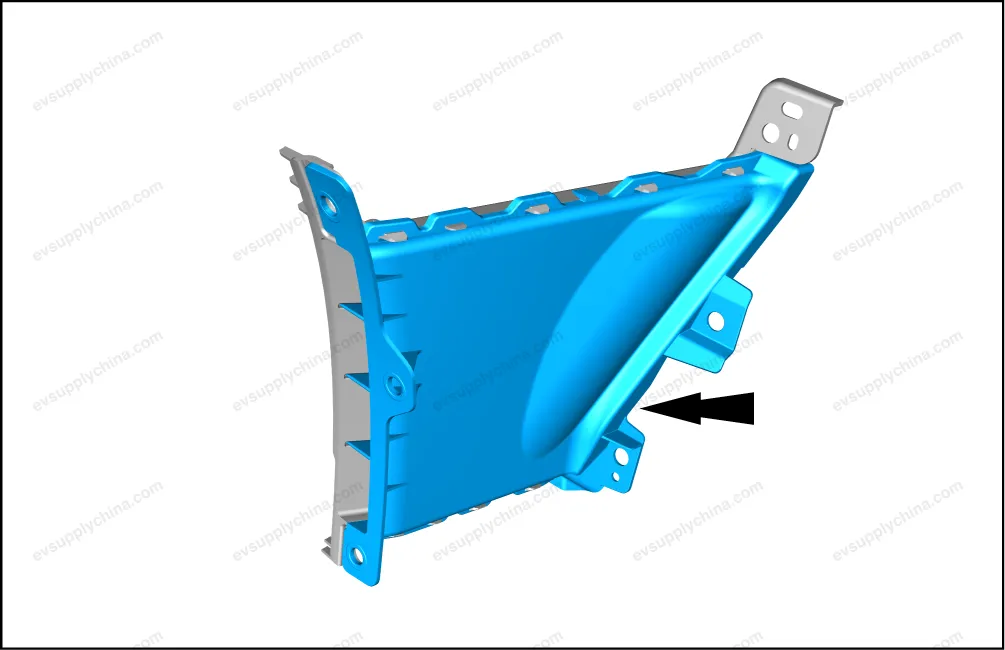

- Take out the front bumper left air inlet I.
Installation
- The installation steps are opposite to the removal steps.
Left Air Inlet II of Front Bumper - Removal and Installation
Removal
- Remove the left front wheel. See Wheel Assembly - Removal and Installation
- Remove the left front wheel eyebrow trim panel assembly. See Left Front Wheel Eyebrow Trim Panel Assembly - Removal and Installation
- Put aside part of the left front wheel mudguard assembly.
- Remove 5 fixing screws.
- Remove 6 fixing clips.
- Put aside part of the left front wheel mudguard assembly.
- Remove 5 fixing screw, and take out the front bumper left air inlet.

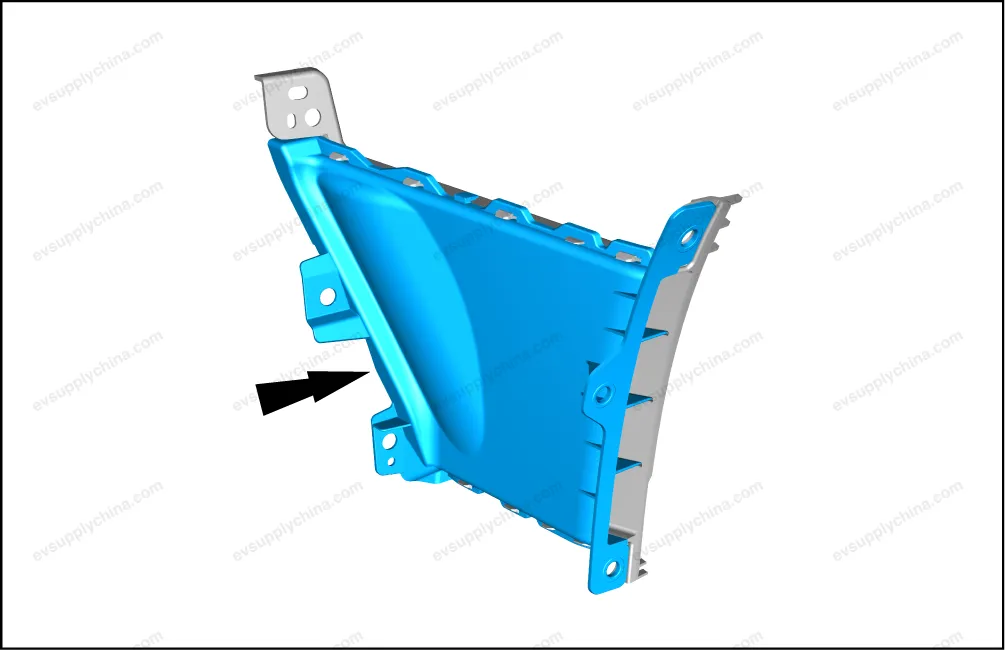

- Take out the front bumper left air inlet II.
Installation
- The installation steps are opposite to the removal steps.
Right Air Inlet I of Front Bumper - Removal and Installation
Removal
- Remove the right front wheel. See Wheel Assembly - Removal and Installation
- Remove the right front wheel eyebrow trim panel assembly. See Right Front Wheel Eyebrow Trim Panel Assembly - Removal and Installation
- Put aside part of the right front wheel mudguard assembly.

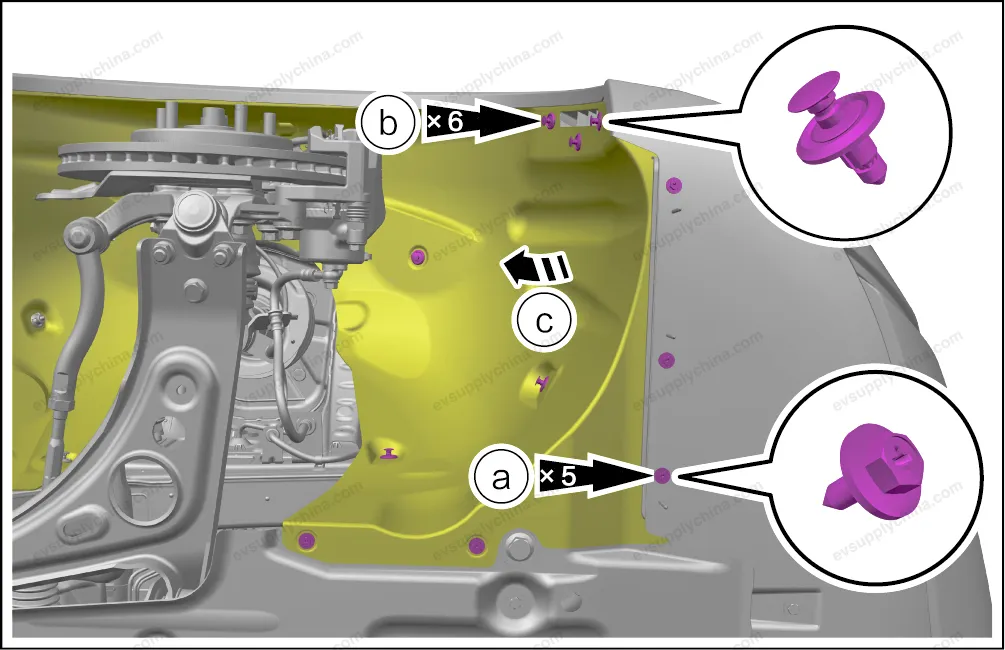

- Remove 5 fixing screws.
- Remove 6 fixing clips.
- Put aside part of the right front wheel mudguard assembly.

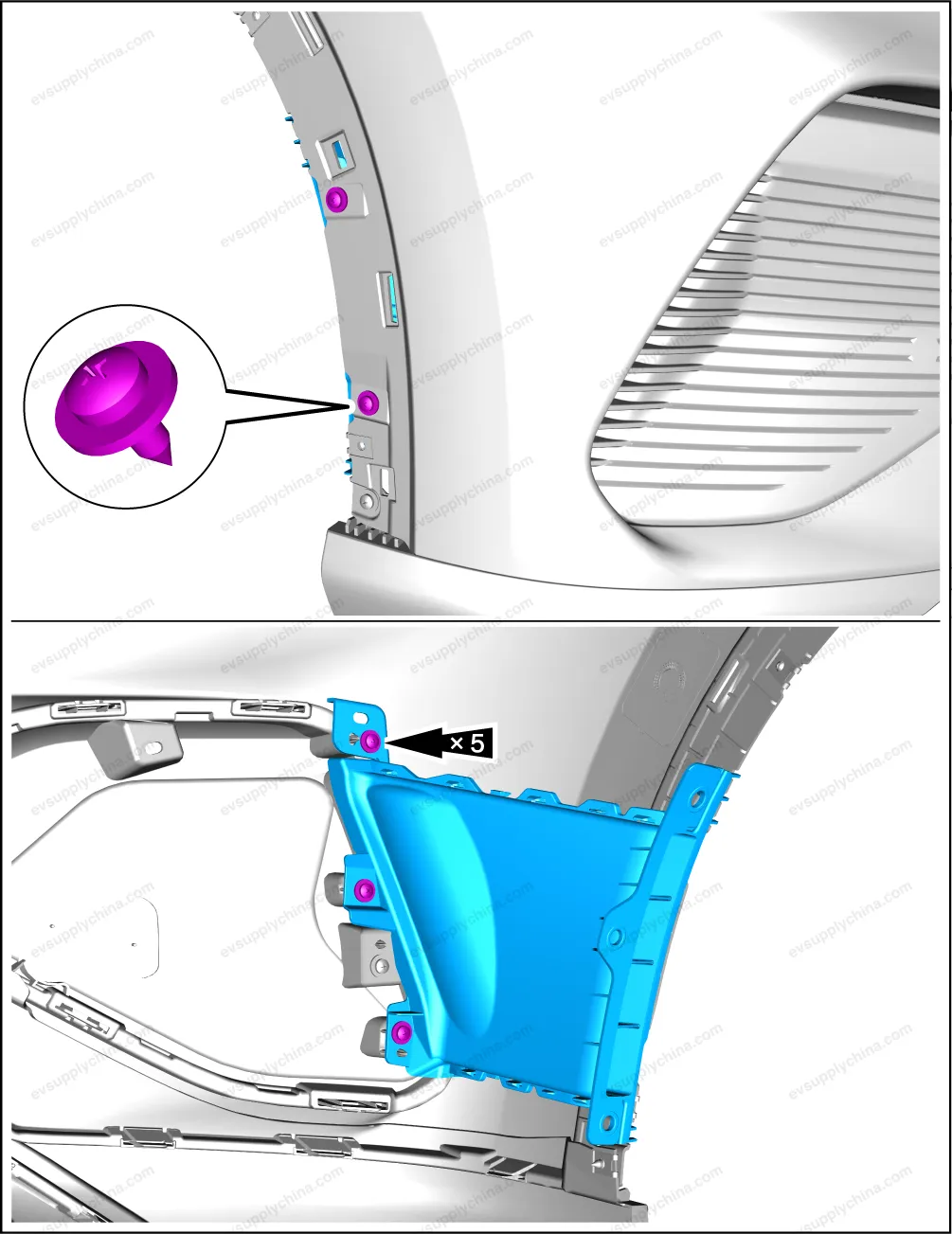

- Remove 5 fixing screws, and take out the front bumper right air inlet.

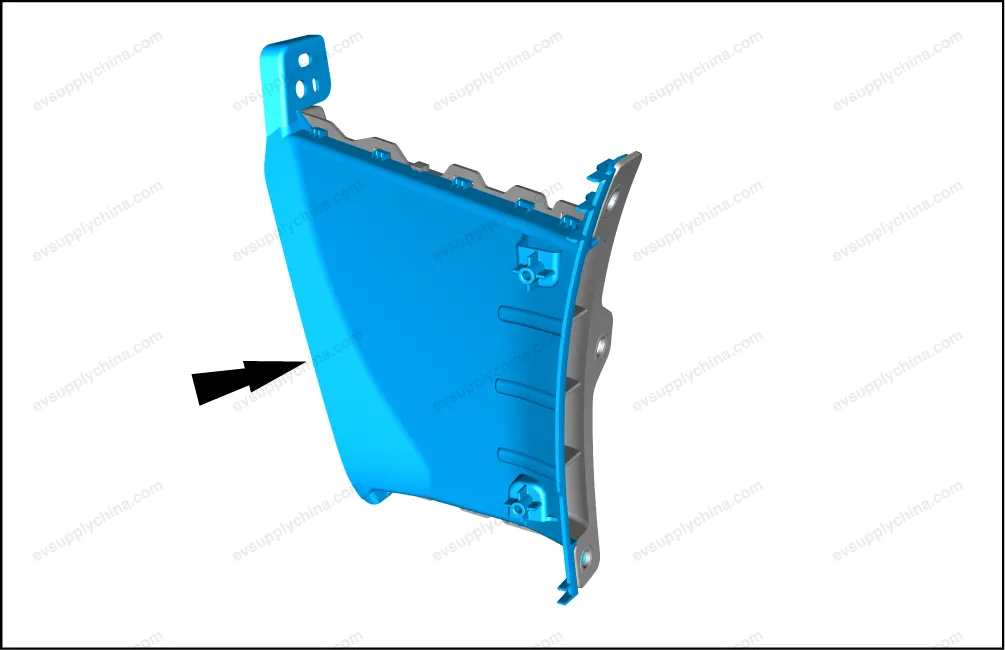

- Take out the front bumper right air inlet I.
Installation
- The installation steps are opposite to the removal steps.
