OEM
BYD Atto 3

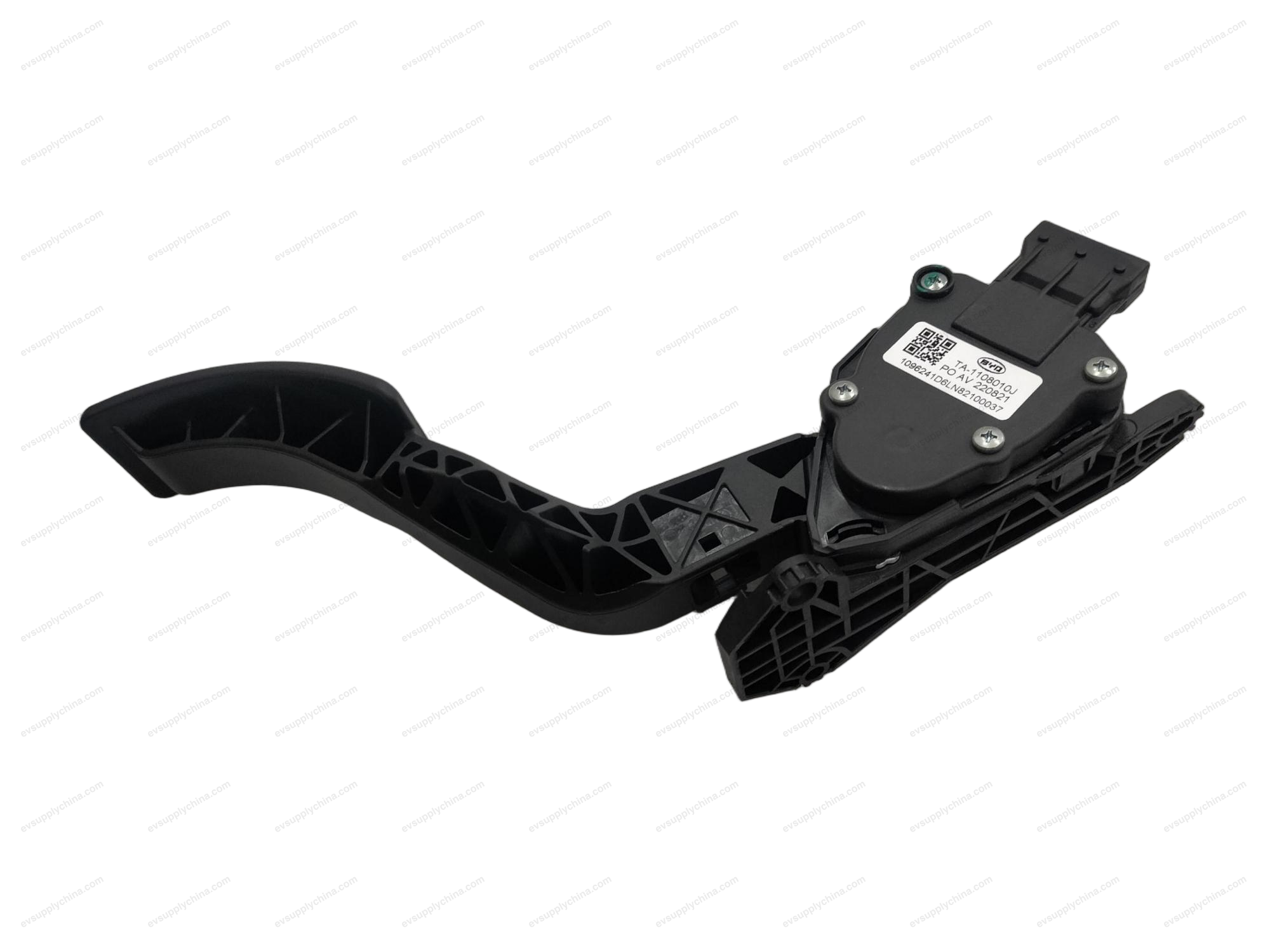

Electronic accelerator pedal assembly
OE / Material Codes
13451442-00TA-1108010J$20USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Sensors & Cameras
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Electronic accelerator pedal assembly Workshop Guide — BYD Atto 3
Accelerator Pedal Assembly - Removal and Installation
Removal
- Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System

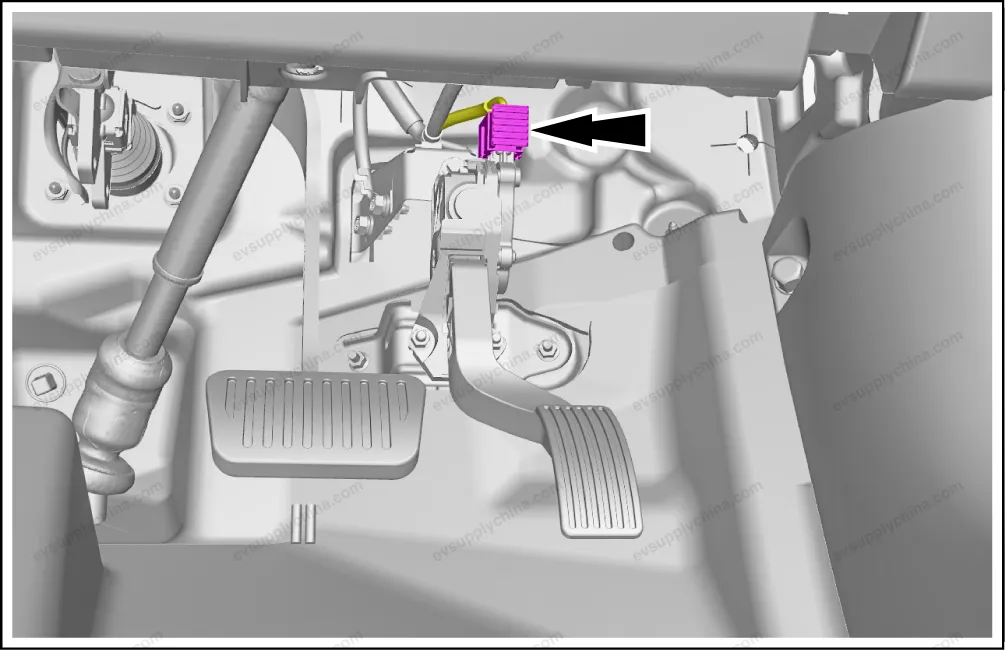

- Disconnect 1 connector of accelerator pedal assembly.

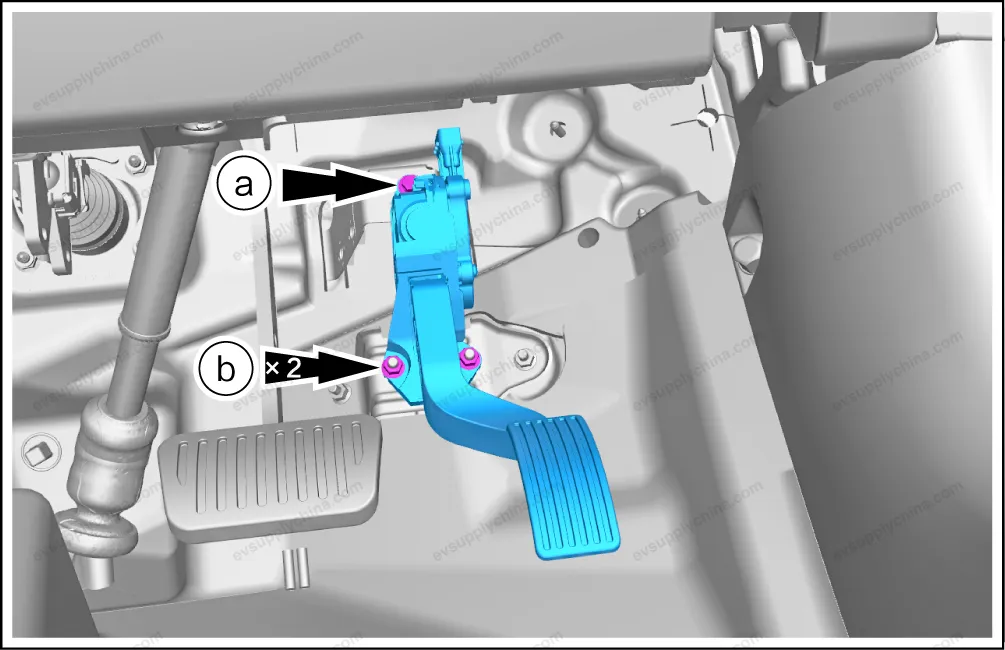

- Remove the accelerator pedal assembly.
- Remove 1 fixing bolt.
- Remove 2 fixing nuts and take out the accelerator pedal assembly.
Installation
- The installation steps are opposite to the removal steps.
Accelerator Pedal Bracket Assembly - Removal and Installation
Removal
- Remove the accelerator pedal assembly. See Accelerator Pedal Assembly - Removal and Installation
- Remove the accelerator pedal bracket assembly.
- Remove 1 fixing bolt.
- Remove 2 fixing nuts and take out the accelerator pedal bracket assembly.
Installation
- The installation steps are opposite to the removal steps.
Electronic accelerator pedal assembly Fitment Diagram — BYD Atto 3
