OEM
BYD Atto 3
Electric water pump assembly I
OE / Material Codes
13451444-00TA-1309010CPrice on requestIn Stock
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Radiator & Cooling
Shipping & Returns
Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Electric water pump assembly I
BYDDolphin
2023–2025BYDQin PLUS EV
2023–2024BYDSeal
2023–2024BYDYuan PLUS/Atto 3
2023–2025BYDYuan UP/Atto 2
2024–2025BYDSealion 05 EV
2025Electric water pump assembly I Workshop Guide — BYD Atto 3
Electric Water Pump Assembly I - Removal and Installation
Removal
- Discharge coolant. See Replacement of Coolant
- Remove the front motor lower mudguard assembly. See Front Motor Lower Mudguard Assembly - Removal and Installation

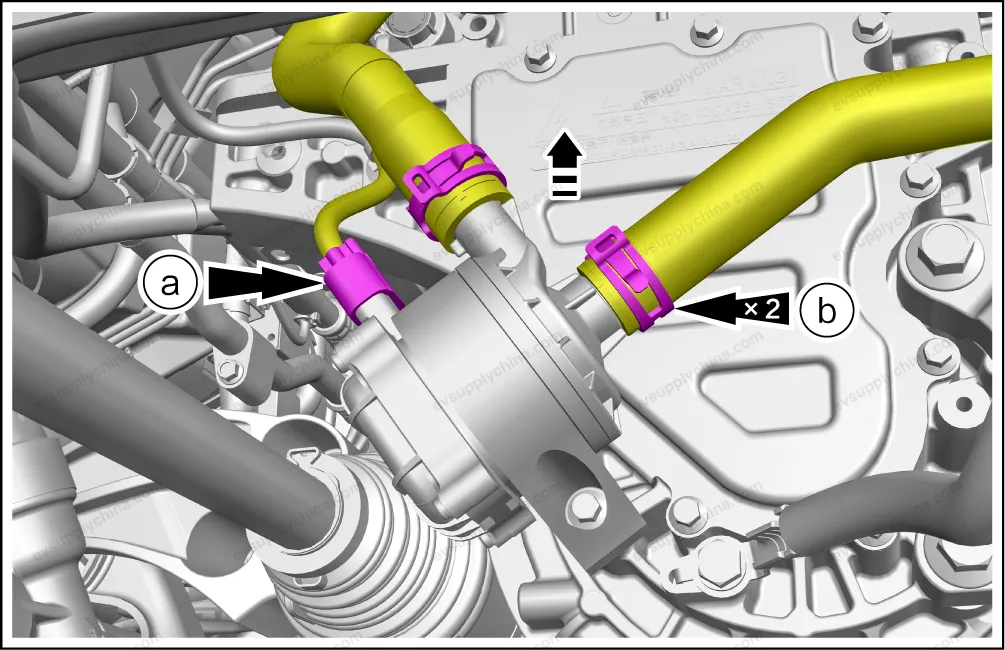

- Detach the pipeline connection of electric water pump assembly I.
- Disconnect 1 connector.
- Loosen 2 fixing clamps, and detach the connection between the plate heat exchanger inlet pipe assembly, the cooling pipe assembly 2 and the electric water pump assembly I.

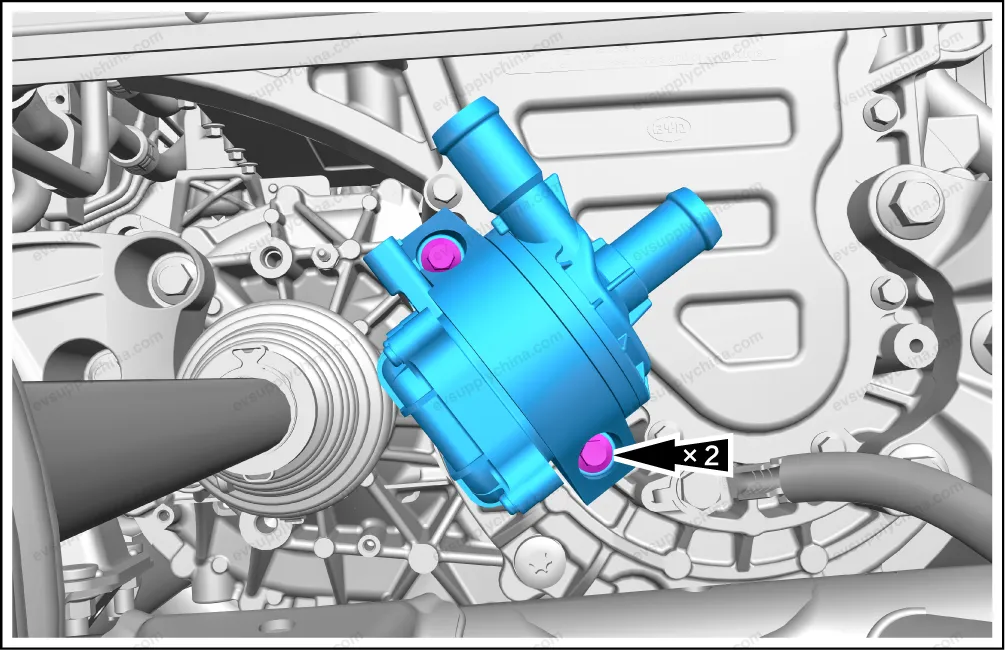

- Remove 2 fixing bolts, and take out the electric water pump assembly I.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, check the pipeline joints to make sure there is no leakage. If any, the inspection and repair shall be carried out again.
Water Pipe Assembly in Motor Cooling Water Pump - Removal and Installation
Removal
- Discharge coolant. See Replacement of Coolant

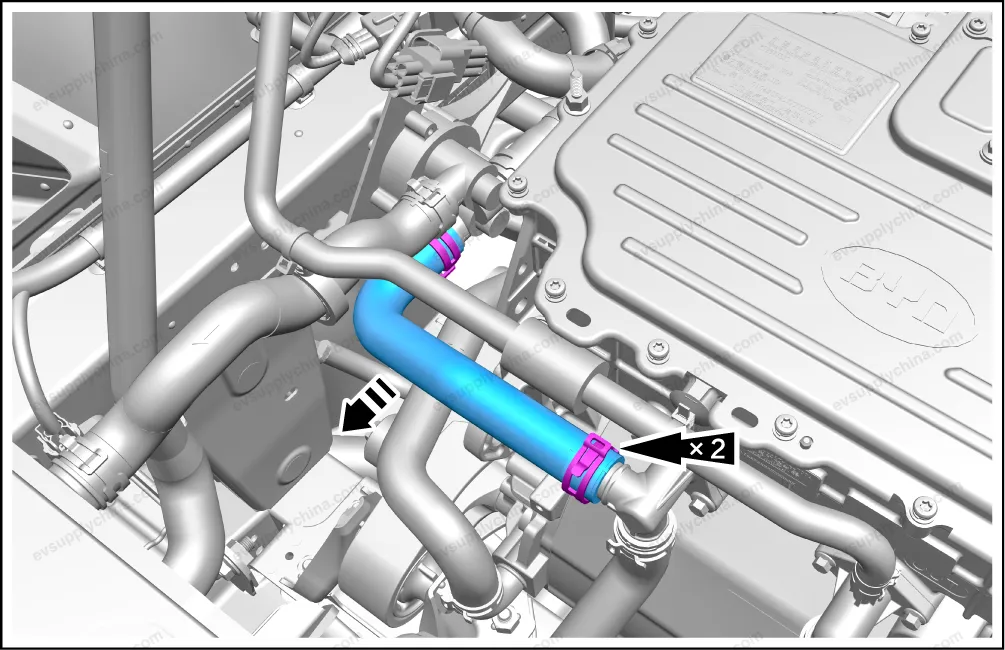

- Loosen 2 fixing clamps, detach the motor cooling water pump inlet pipe assembly from the three-way water valve body assembly
and the integrated intelligent front drive assembly, and take it out.
Installation
- The installation steps are opposite to the removal steps.
Caution After installation, check the pipeline joints to make sure there is no leakage. If any, the inspection and repair shall be carried out again.
Electric water pump assembly I Fitment Diagram — BYD Atto 3
