Right front wheel arch trim assembly
OE / Material Codes
13186506-00SC2E-5302420Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Fenders & Mudguards
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Right front wheel arch trim assembly
Right front wheel arch trim assembly Workshop Guide — BYD Atto 3
Right Front Wheel Eyebrow Trim Panel Assembly - Removal and Installation
Removal

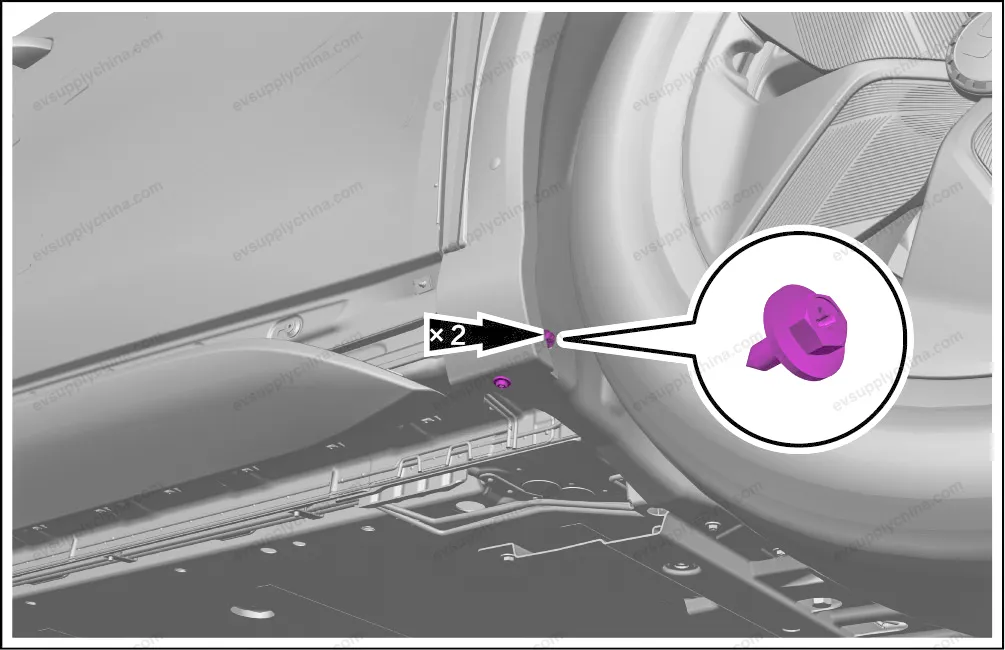

- Remove 2 fixing screws from the right front wheel eyebrow trim panel assembly.

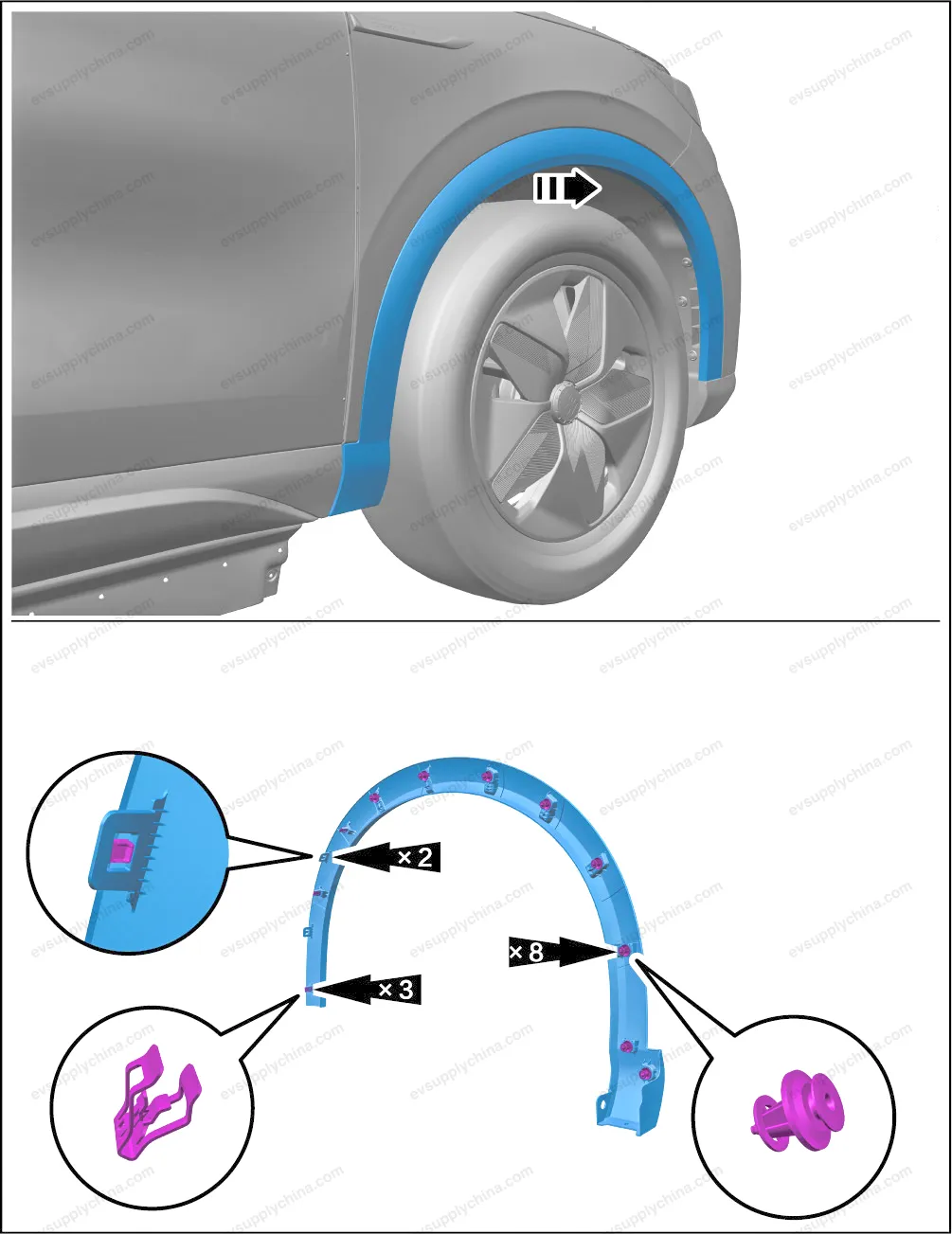

- Use a plastic crow bar to carefully pry up the right front wheel eyebrow trim panel assembly.
Caution Be careful when removing the trim panel to avoid scratching the surface material.
Installation
- The installation steps are opposite to the removal steps.
Caution Before installation, it is necessary to check whether all the clips are missing or damaged, and if so, install new clips, and then install the trim panel; After installation, check whether all clips are installed in place. The installation position of the trim panel may deviate, resulting in warping or abnormal gaps.
Left Front Wheel Eyebrow Trim Panel Assembly - Removal and Installation
Removal

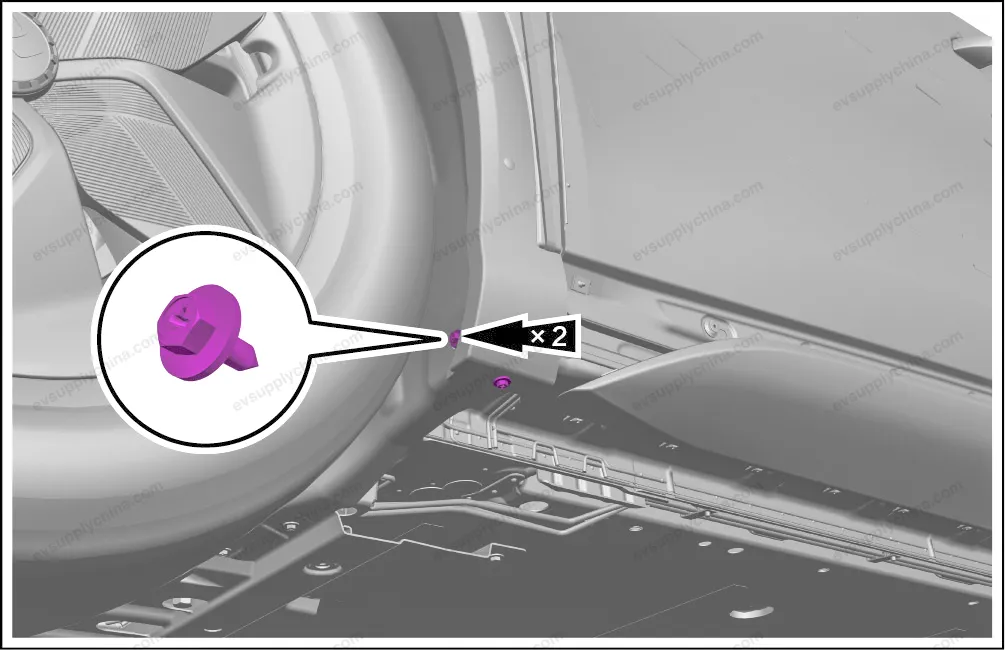

- Remove 2 fixing screws from the left front wheel eyebrow trim panel assembly.

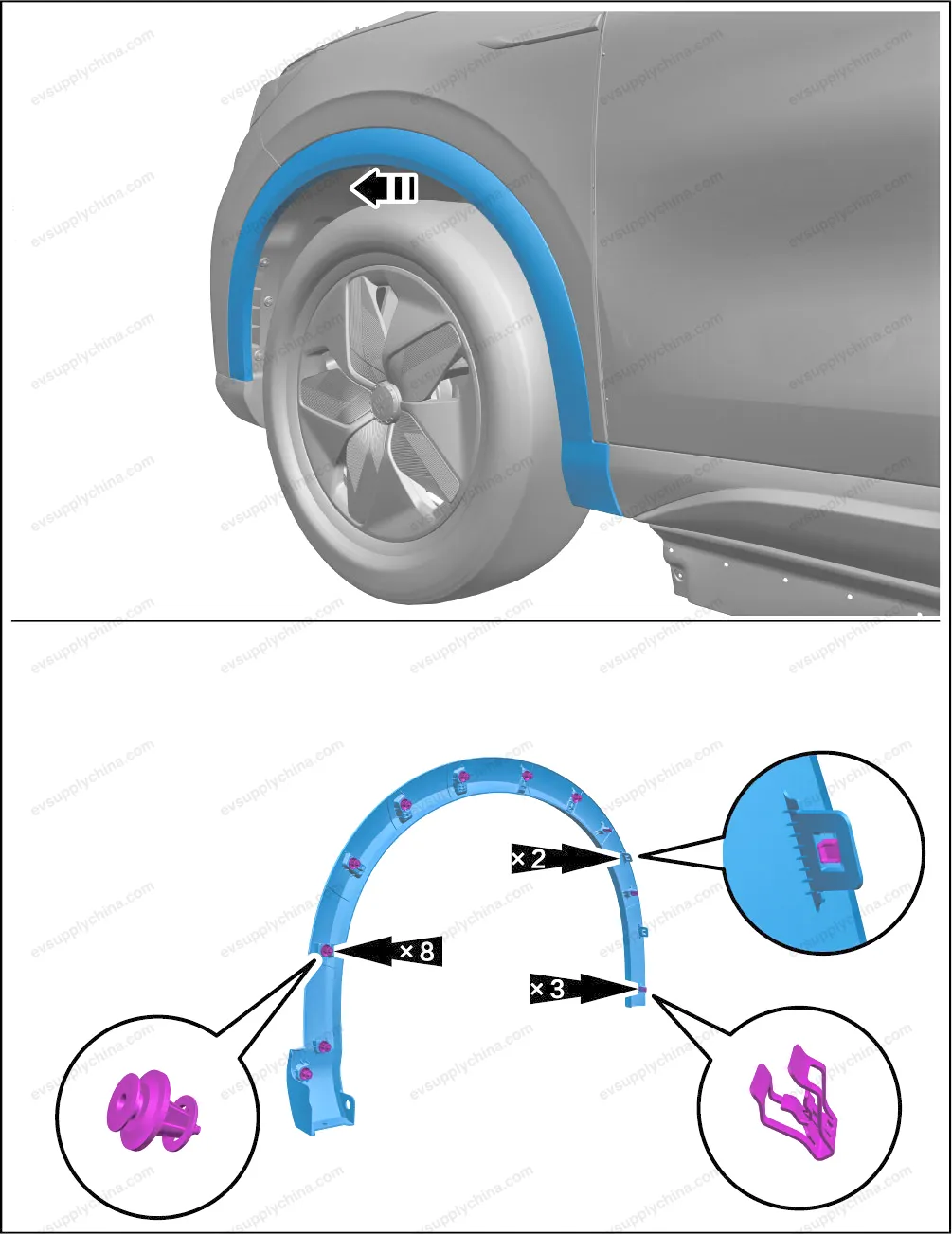

- Use a plastic crow bar to carefully pry up the left front wheel eyebrow trim panel assembly.
Caution Be careful when removing the trim panel to avoid scratching the surface material.
Installation
- The installation steps are opposite to the removal steps.
Caution Before installation, it is necessary to check whether all the clips are missing or damaged, and if so, install new clips, and then install the trim panel; After installation, check whether all clips are installed in place. The installation position of the trim panel may deviate, resulting in warping or abnormal gaps.
