BYD Atto 3

Right exterior rearview mirror assembly

OE / Material Codes

16890830-00SC2EM-8202109B-E3
Price on requestAvailable on Request

Technical Specifications

Vehicle Model
BYD Atto 3
Steering Configuration
Left-Hand Drive & Right-Hand Drive
Category
Door Mirrors

Shipping & Returns

Ships worldwide from China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.

7-day return window for unused items in original packaging. Contact us before returning any item.

Right exterior rearview mirror assembly Workshop Guide — BYD Atto 3

Right Outside Rearview Mirror Assembly - Removal and Installation

Removal

  1. Remove the right front door corner guard assembly. See Right Front Door Corner Guard Assembly - Removal and Installation
  2. Remove the right outside rearview mirror assembly.
    Right exterior rearview mirror assembly — BYD BYD Atto 3 — OE 16890830-00, SC2EM-8202109B-E3
  3. Disconnect 2 connector.
  4. Remove 3 fixing bolts, and take out the right outside rearview mirror assembly.

Installation

  1. The installation steps are opposite to the removal steps.

Outside Rearview Mirror Right Holder Assembly - Removal and Installation

Removal

  1. Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System

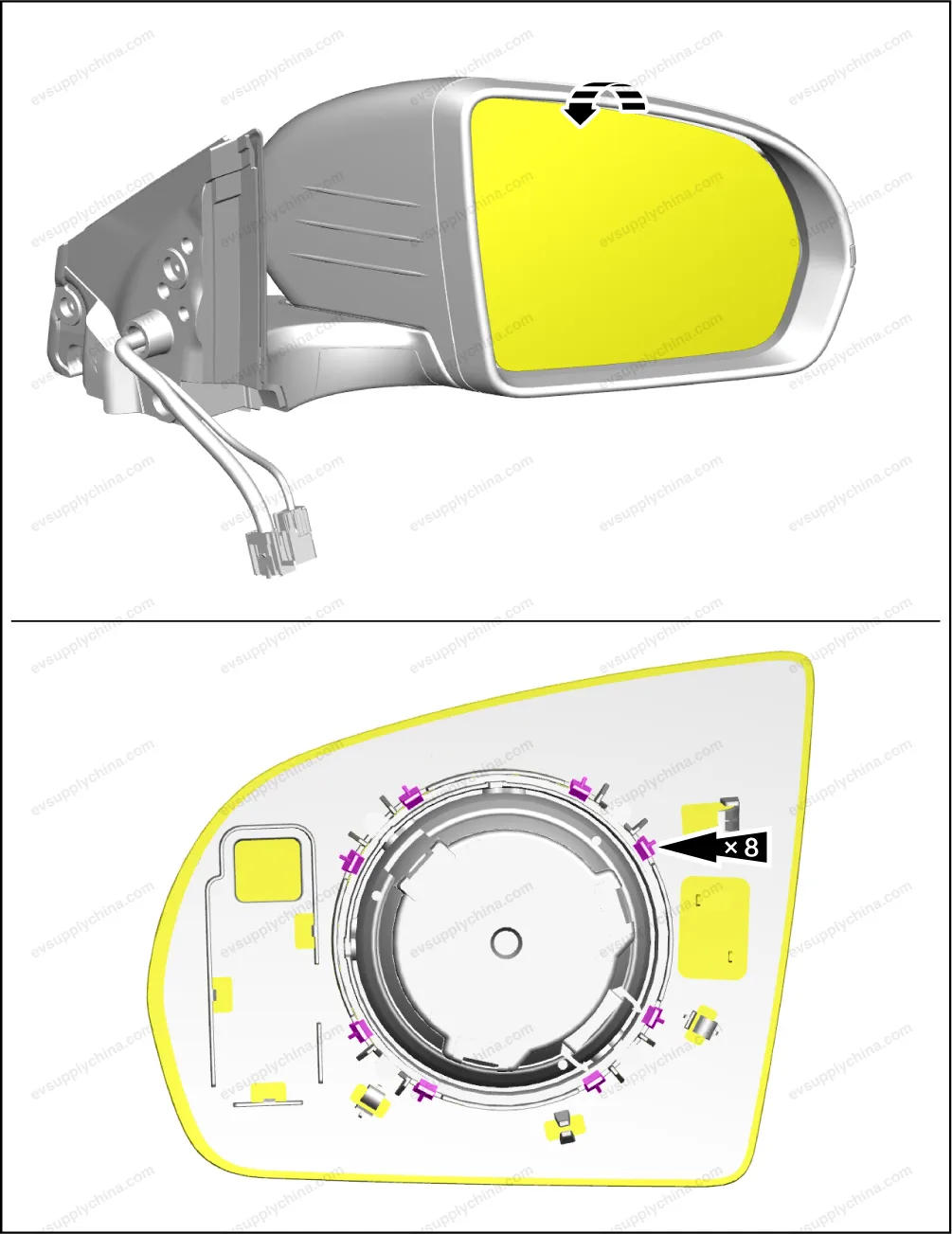

  2. Pry up the outside rearview mirror right holder assembly with a plastic lever, and detach the clips.
    Right exterior rearview mirror assembly — BYD BYD Atto 3 — OE 16890830-00, SC2EM-8202109B-E3
  3. Remove the right blind spot warning light assembly. See Right Blind Spot Warning Light Assembly - Removal and Installation

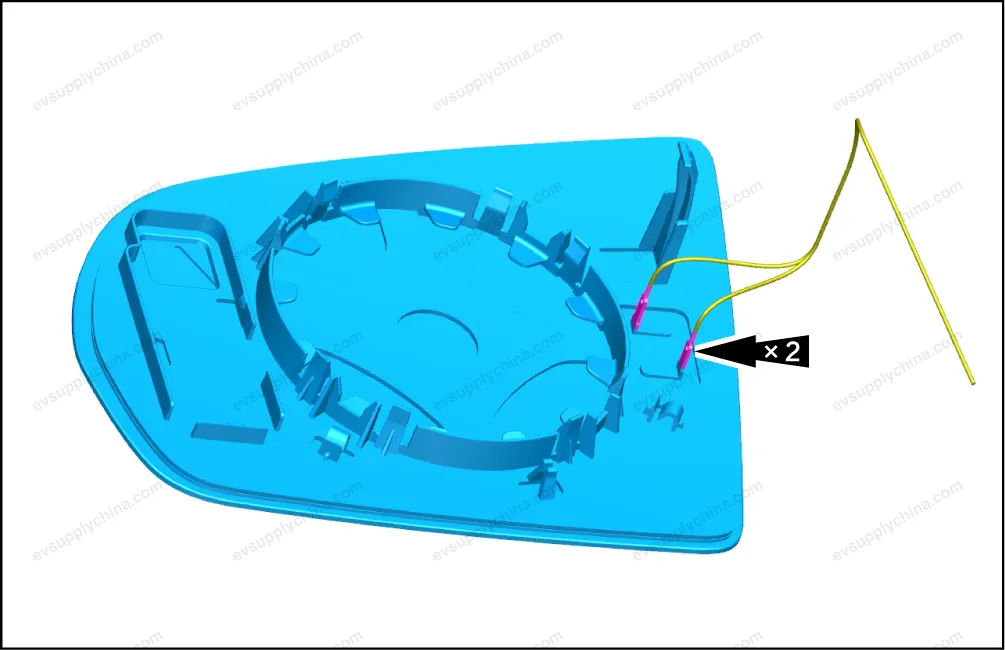

  4. Detach 2 connectors, and take out the outside rearview mirror right holder assembly.
    Right exterior rearview mirror assembly — BYD BYD Atto 3 — OE 16890830-00, SC2EM-8202109B-E3

Caution When removing, pry up the four edges along the clips, meanwhile, detaching the clips. Do not pry up the clips violently, otherwise, it may result in rearview mirror damage.

Installation

  1. The installation steps are opposite to the removal steps.

Inside Rearview Mirror Assembly - Removal and Installation

Removal

  1. Power off the low voltage electrical system. See Power-off and Power-on of Low Voltage Electrical System
  2. Remove the LDW module cover II. See LDW Module Cover II - Removal and Installation
  3. Disconnect 1 connector of the inside rearview mirror assembly.
    Right exterior rearview mirror assembly — BYD BYD Atto 3 — OE 16890830-00, SC2EM-8202109B-E3
  4. Turn 45 ° clockwise to take out the inside rearview mirror assembly.
    Right exterior rearview mirror assembly — BYD BYD Atto 3 — OE 16890830-00, SC2EM-8202109B-E3

Installation

  1. The installation steps are opposite to the removal steps.
