Left rear wheel arch trim panel assembly
OE / Material Codes
13186501-00SC2E-5302430Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Fenders & Mudguards
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left rear wheel arch trim panel assembly
Left rear wheel arch trim panel assembly Workshop Guide — BYD Atto 3

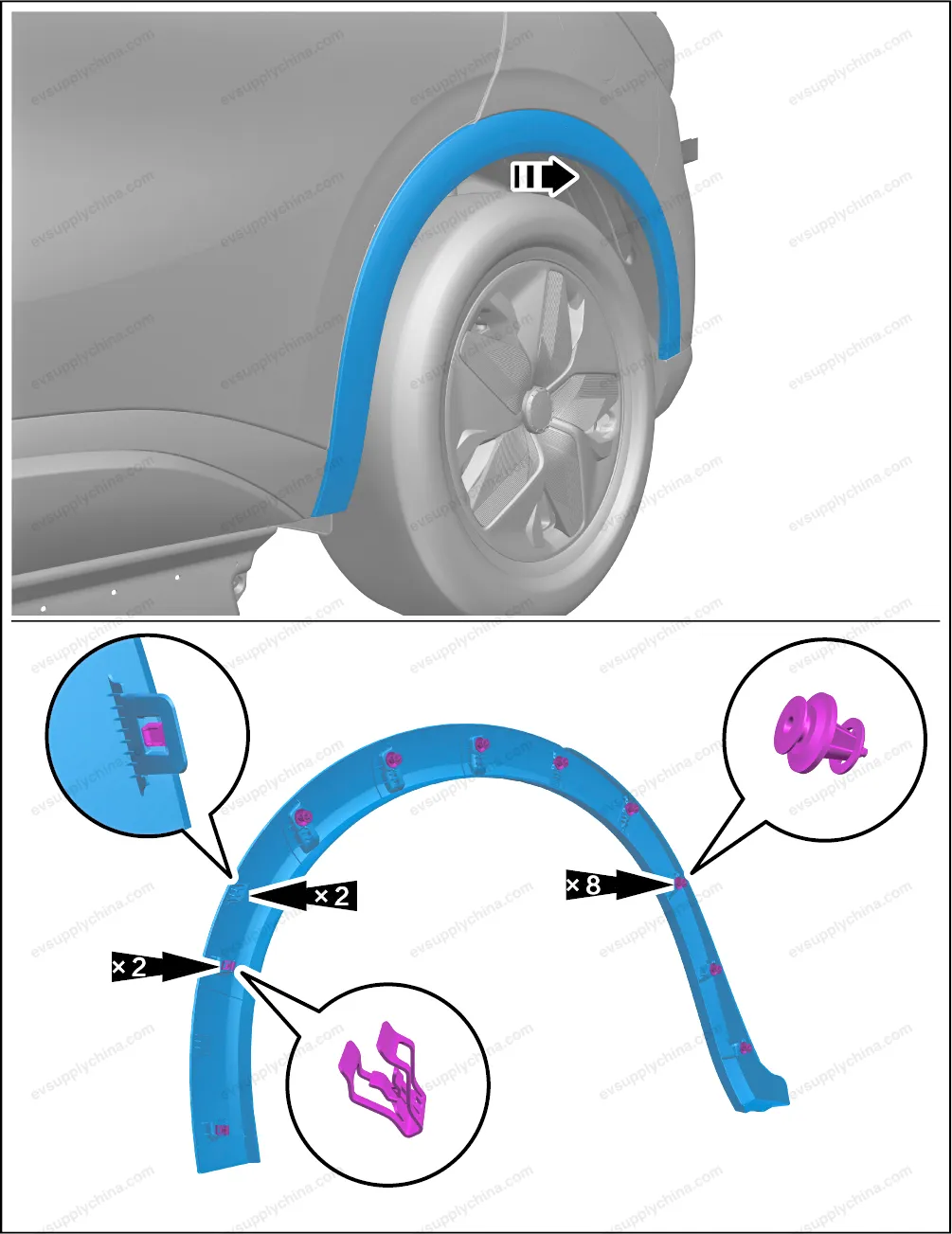

Left Rear Wheel Eyebrow Trim Panel Assembly - Removal and Installation
Removal

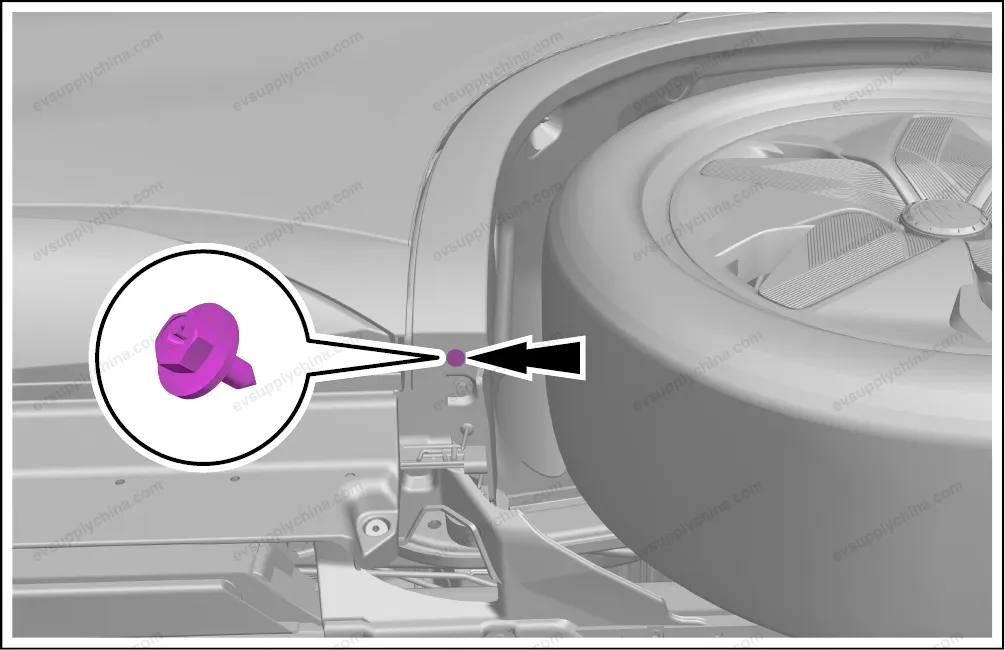

- Remove 1 fixing screw from the left rear wheel eyebrow trim panel assembly.
- Use a plastic crow bar to carefully pry up the left rear wheel eyebrow trim panel assembly.
Caution Be careful when removing the trim panel to avoid scratching the surface material.
Installation
- The installation steps are opposite to the removal steps.
Caution Before installation, it is necessary to check whether all the clips are missing or damaged, and if so, install new clips, and then install the trim panel; After installation, check whether all clips are installed in place. The installation position of the trim panel may deviate, resulting in warping or abnormal gaps.

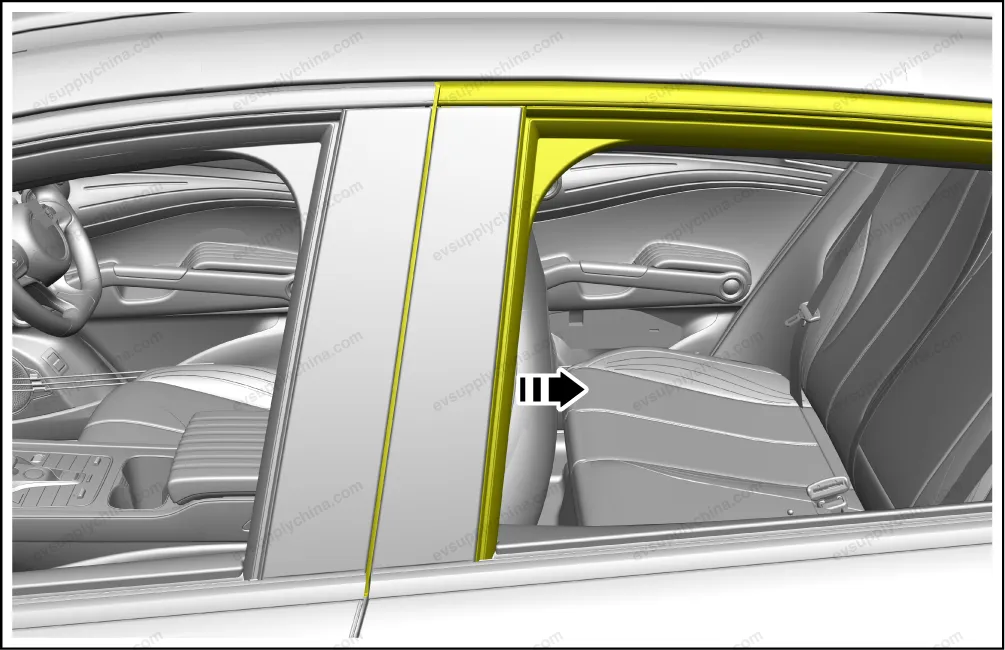

Left Rear B-Pillar Exterior Trim Panel Assembly - Removal and Installation
Removal
- Remove the left rear door glass assembly. See Left Rear Door Glass Assembly - Removal and Installation
- Detach part of the left rear door mud tank assembly.

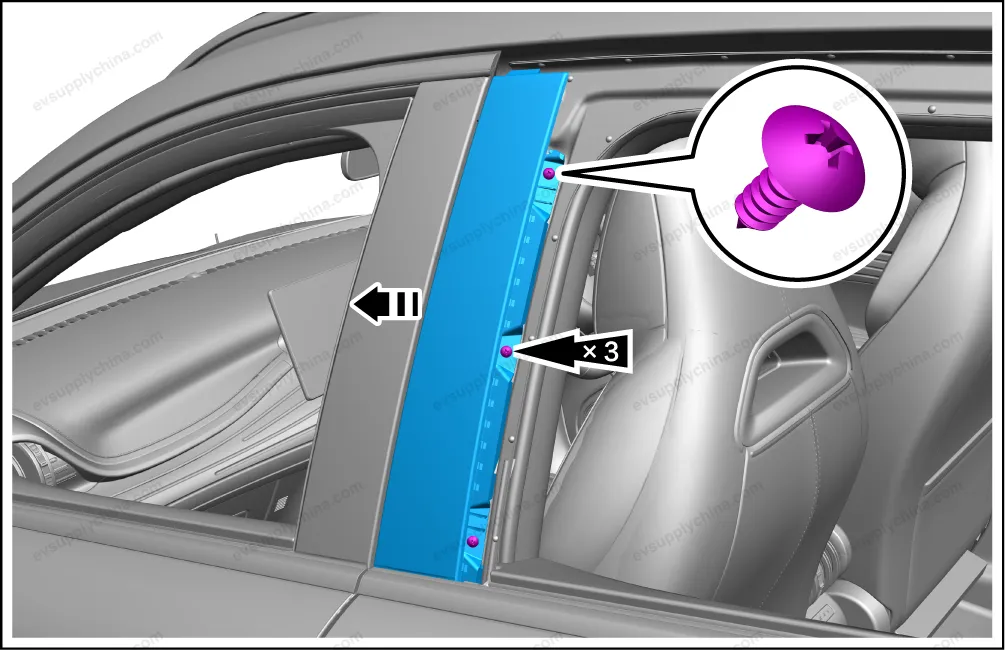

- Remove 3 fixing screws, and take out the left rear B-pillar exterior trim panel assembly.
Installation
- The installation steps are opposite to the removal steps.

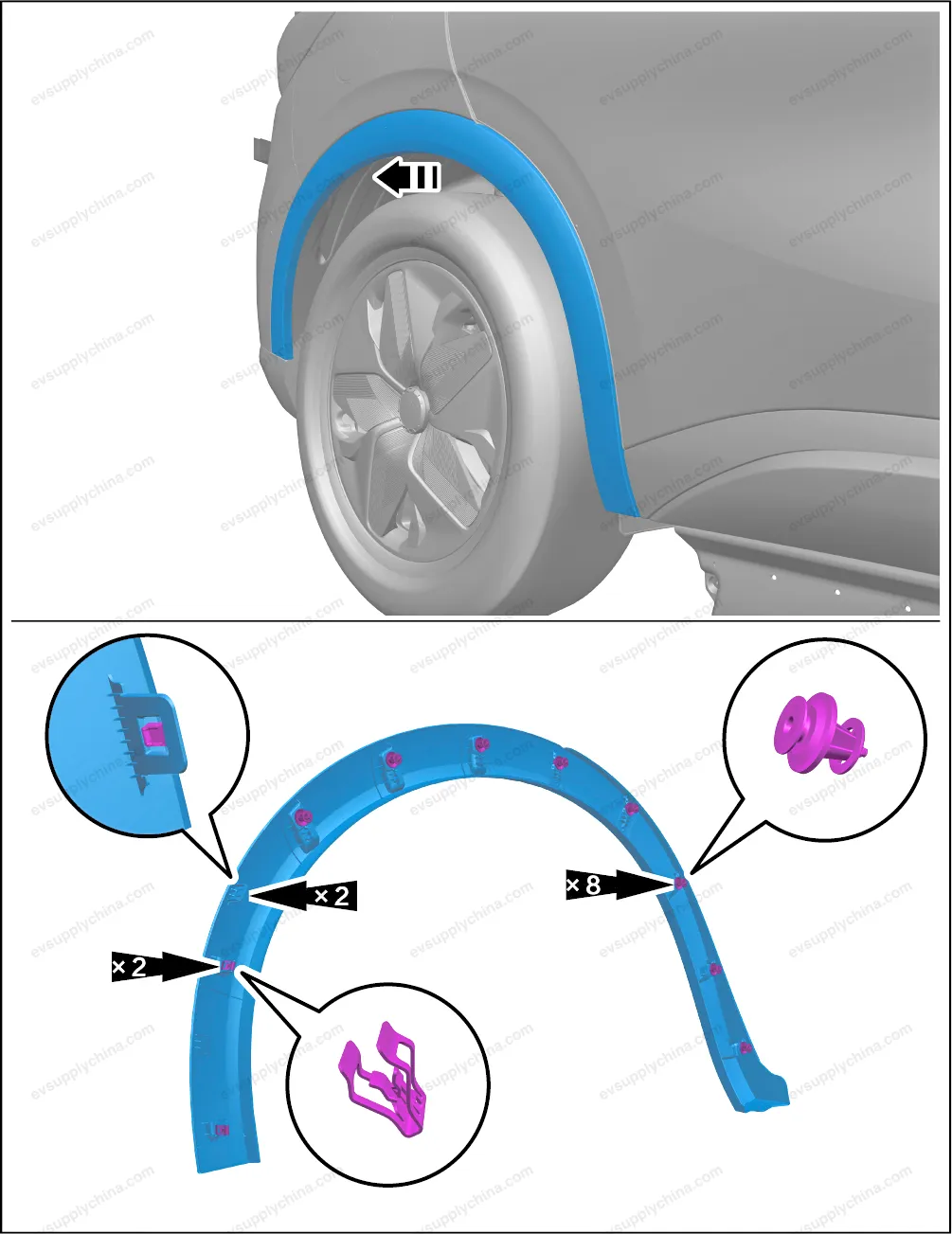

Right Rear Wheel Eyebrow Trim Panel Assembly - Removal and Installation
Removal

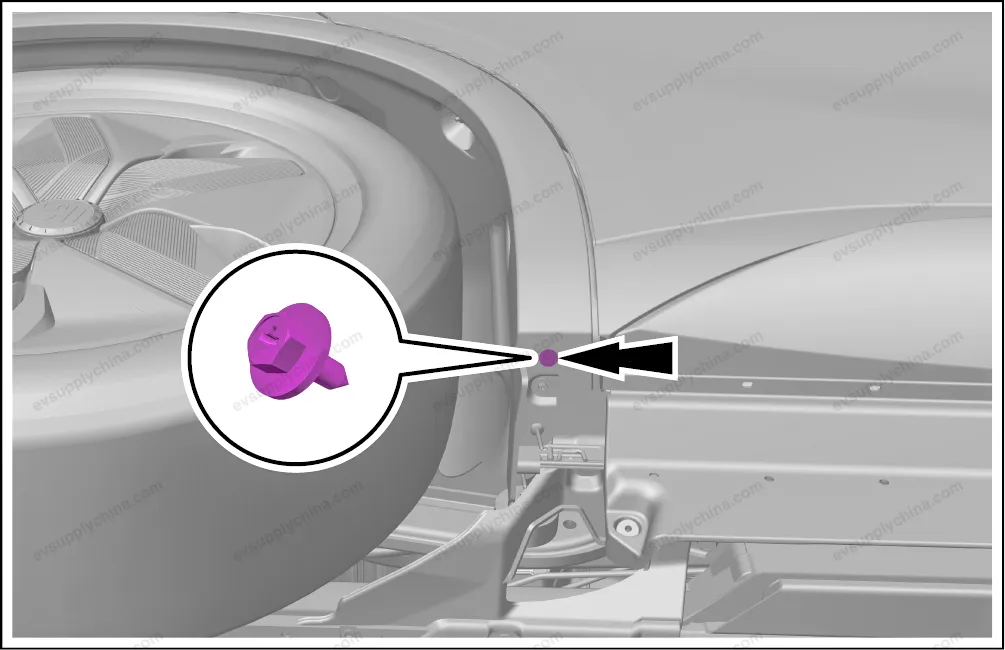

- Remove 1 fixing screw from the right rear wheel eyebrow trim panel assembly.
- Use a plastic crow bar to carefully pry up the right rear wheel eyebrow trim panel assembly.
Caution Be careful when removing the trim panel to avoid scratching the surface material.
Installation
- The installation steps are opposite to the removal steps.
Caution Before installation, it is necessary to check whether all the clips are missing or damaged, and if so, install new clips, and then install the trim panel; After installation, check whether all clips are installed in place. The installation position of the trim panel may deviate, resulting in warping or abnormal gaps.
