OEMAftermarket
BYD Atto 3

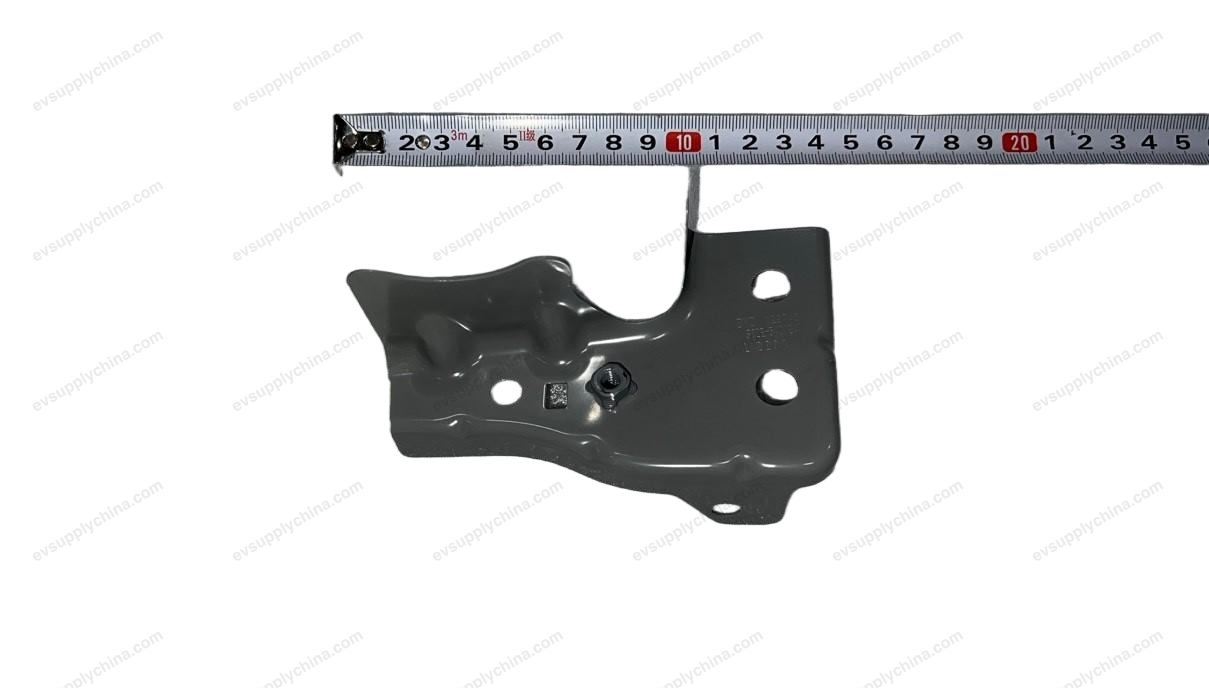

Left fender undermount bracket
OE / Material Codes
13623551-00SC2E-5401241Q/77$28USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Fenders & Mudguards
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left fender undermount bracket
BYDYuan PLUS/Atto 3
2022–2025Left fender undermount bracket Workshop Guide — BYD Atto 3
Left Rear Fender Bracket - Removal and Installation
Removal
- Remove the left front wheel mudguard assembly. See Left Front Wheel Mudguard Assembly - Removal and Installation
- Remove the front compartment left trim panel assembly. See Front Compartment Left Trim Panel Assembly - Removal and Installation
- Remove 2 fixing bolts from the left rear fender bracket.
- Remove 3 fixing bolts, and take out the left rear fender bracket.
Installation
- The installation steps are opposite to the removal steps.
Left Front Fender Bracket - Removal and Installation
Removal
- Remove the left combination headlight assembly. See Left Combination Headlight Assembly - Removal and Installation
- Remove 4 fixing bolts, and take out the left front fender bracket.
Installation
- The installation steps are opposite to the removal steps.

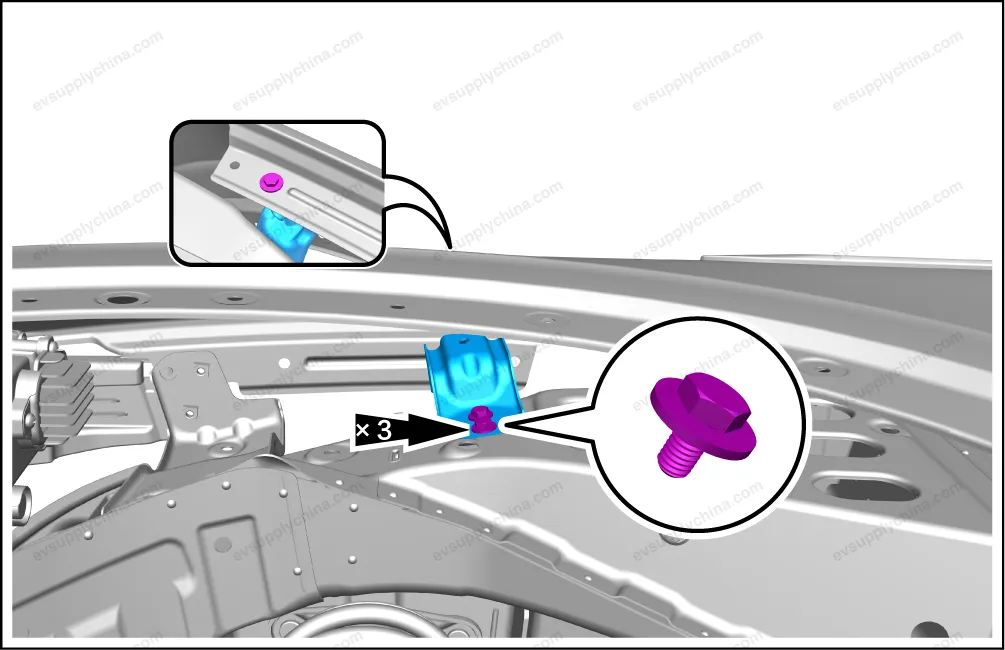

Upper Mounting Bracket of Left Fender - Removal and Installation
Removal
- Remove the left front wheel mudguard assembly. See Left Front Wheel Mudguard Assembly - Removal and Installation
- Remove the front compartment left trim panel assembly. See Front Compartment Left Trim Panel Assembly - Removal and Installation
- Remove 3 fixing bolts, and take out the upper mounting bracket of left fender.
Installation
- The installation steps are opposite to the removal steps.
