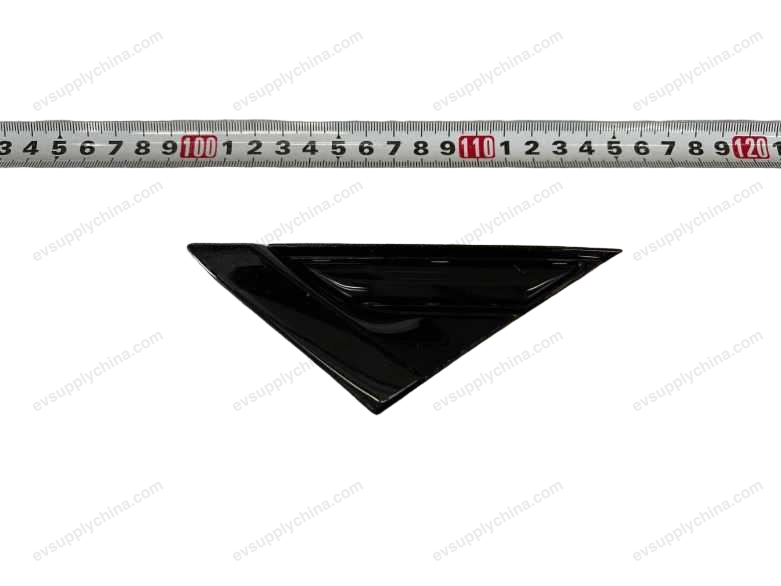

Left fender corner trim assembly
OE / Material Codes
15171395-00SC2E-5302330CTechnical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Universal (Left & Right-Hand Drive)
- Category
- Fenders & Mudguards
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Compatible Vehicles — Left fender corner trim assembly
Left fender corner trim assembly Workshop Guide — BYD Atto 3

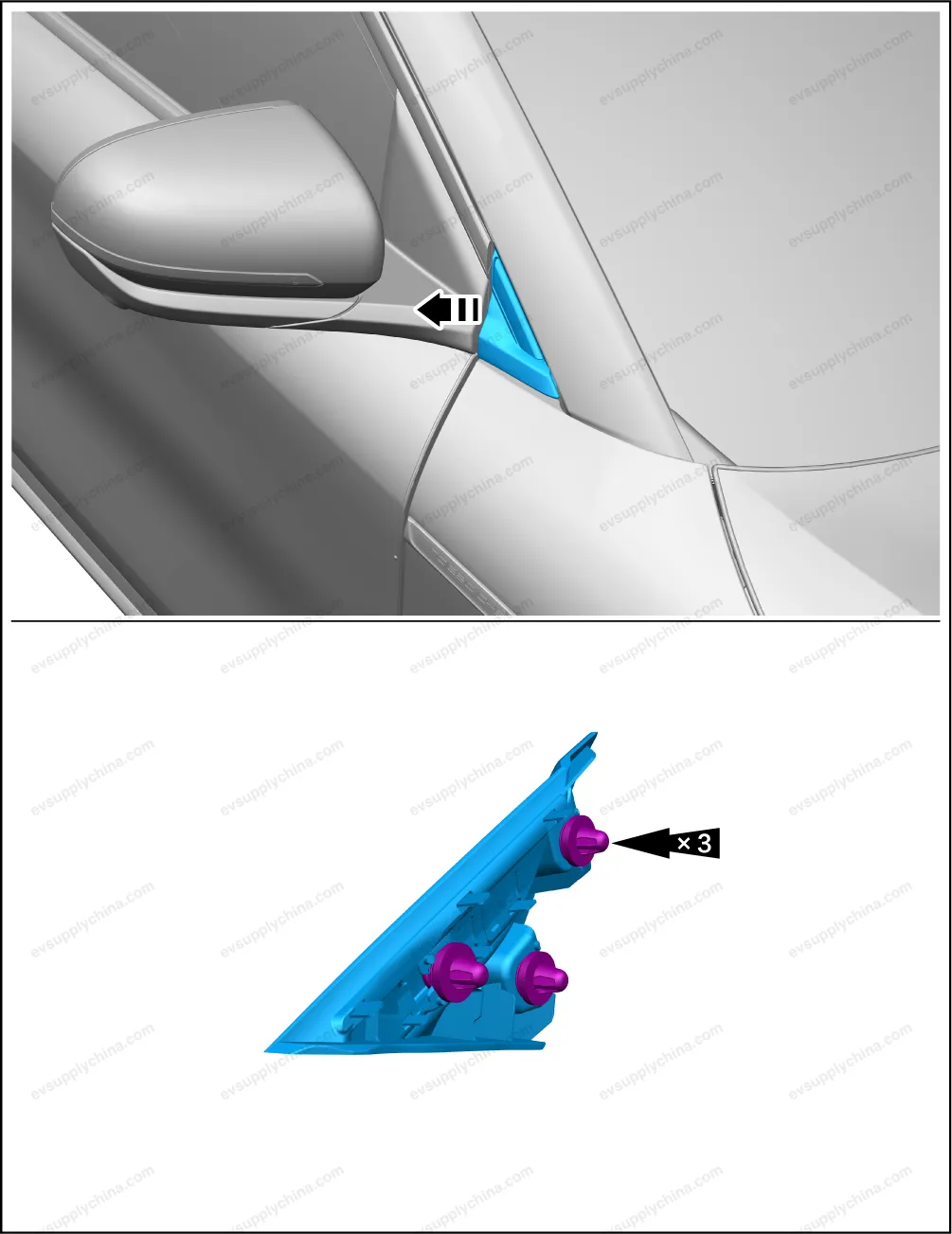

Left Fender Corner Trim Assembly - Removal and Installation
Removal
- Pry up the left fender corner trim assembly with a plastic lever.
Caution When removing the trim panel, be careful not to damage the vehicle paint.
Installation
- The installation steps are opposite to the removal steps.
Caution Before installation, it is necessary to check whether all the clips are missing or damaged, and if so, install new clips, and then install the trim panel; After installation, check whether all clips are installed in place. The installation position of the trim panel may deviate, resulting in warping or abnormal gaps.

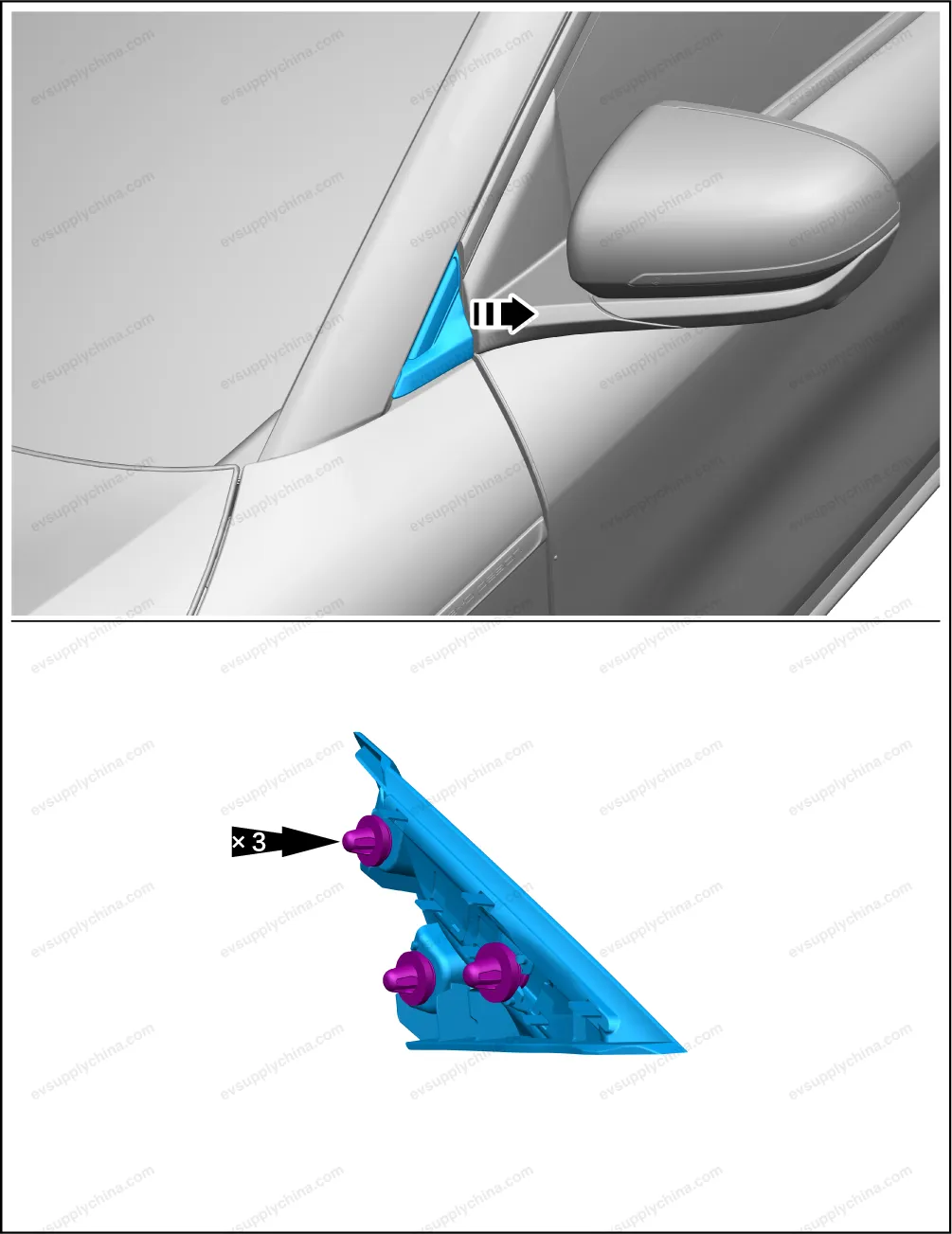

Right Fender Corner Trim Assembly - Removal and Installation
Removal
- Pry up the right fender corner trim assembly with a plastic lever.
Caution When removing the trim panel, be careful not to damage the vehicle paint.
Installation
- The installation steps are opposite to the removal steps.
Caution Before installation, it is necessary to check whether all the clips are missing or damaged, and if so, install new clips, and then install the trim panel; After installation, check whether all clips are installed in place. The installation position of the trim panel may deviate, resulting in warping or abnormal gaps.

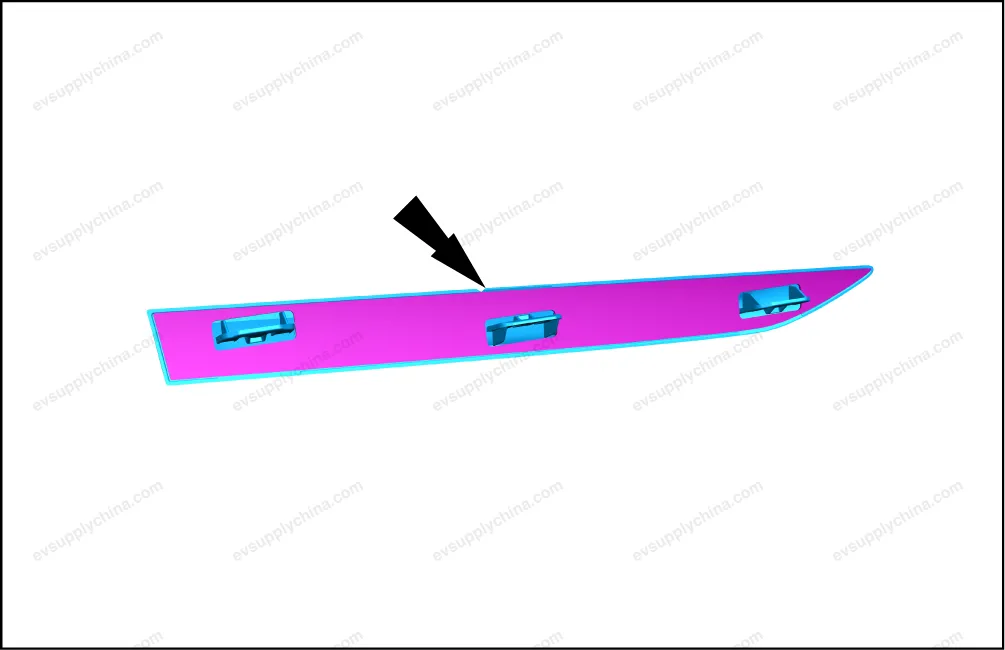

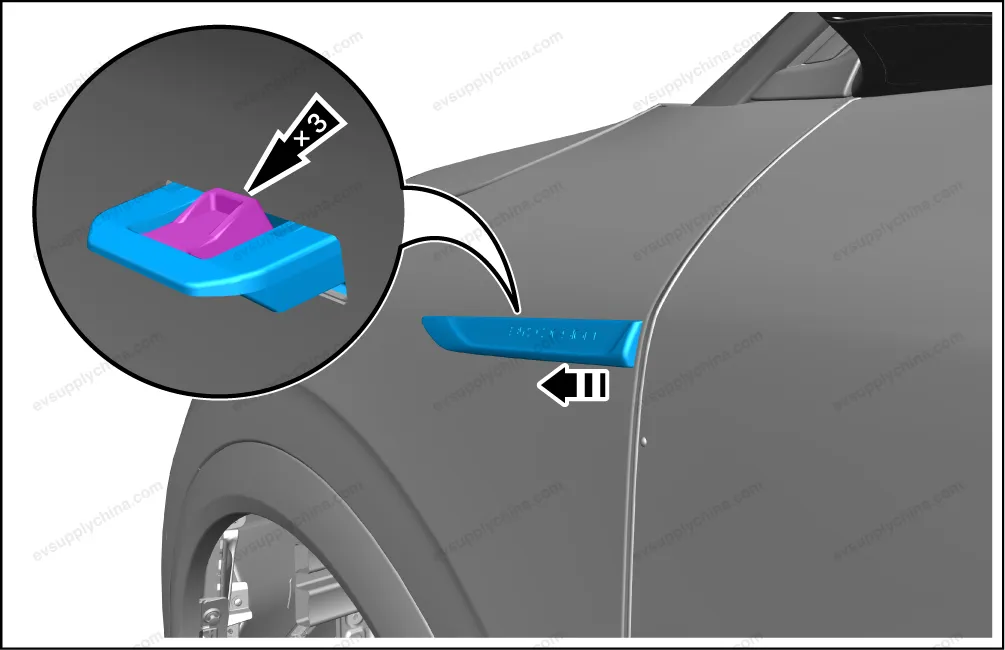

Left Fender Trim Strip Assembly - Removal and Installation
Removal
- Remove the left front wheel mudguard assembly. See Left Front Wheel Mudguard Assembly - Removal and Installation
- Pry up the left fender trim strip assembly.
- Remove the adhesive left on the contact surface between the left fender trim strip assembly and the left fender.
Caution Before the operation, place a buffering material between the tool and the surface of the fender, so as to prevent paint damage by the tool.
Installation
- Install new double-sided adhesive tape onto the left fender trim strip assembly.
- The installation steps are opposite to the removal steps.
