BYD Atto 3
Left combination headlight assembly
OE / Material Codes
16969227-00SC2ER-4121010B$141USD
In StockNeed bulk or wholesale pricing?
Technical Specifications
- Vehicle Model
- BYD Atto 3
- Steering Configuration
- Left-Hand Drive & Right-Hand Drive
- Category
- Headlights
Shipping & Returns
Ships worldwide from Shanghai, China via air or sea freight. Standard delivery 5–30 business days, express 2–10 business days. Shipping cost is calculated at checkout.
7-day return window for unused items in original packaging. Contact us before returning any item.
Left combination headlight assembly Workshop Guide — BYD Atto 3
Left Combination Headlight Assembly - Removal and Installation
Removal
- Remove the front compartment left trim panel assembly. See Front Compartment Left Trim Panel Assembly - Removal and Installation
- Remove the front bumper assembly. See Front Bumper Assembly - Removal and Installation

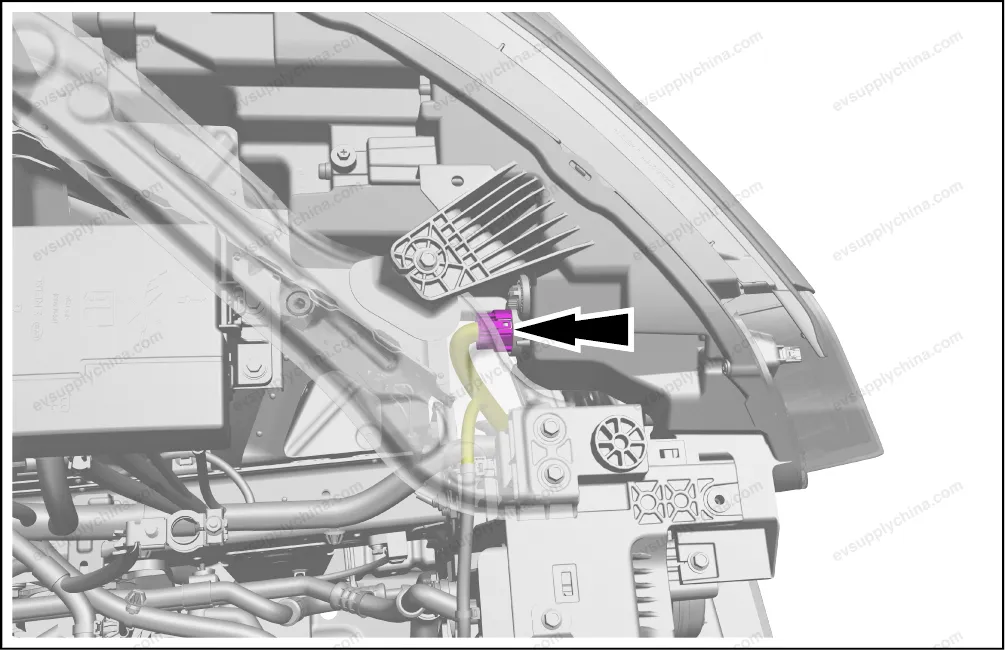

- Disconnect 1 connector of left combination headlamp assembly.

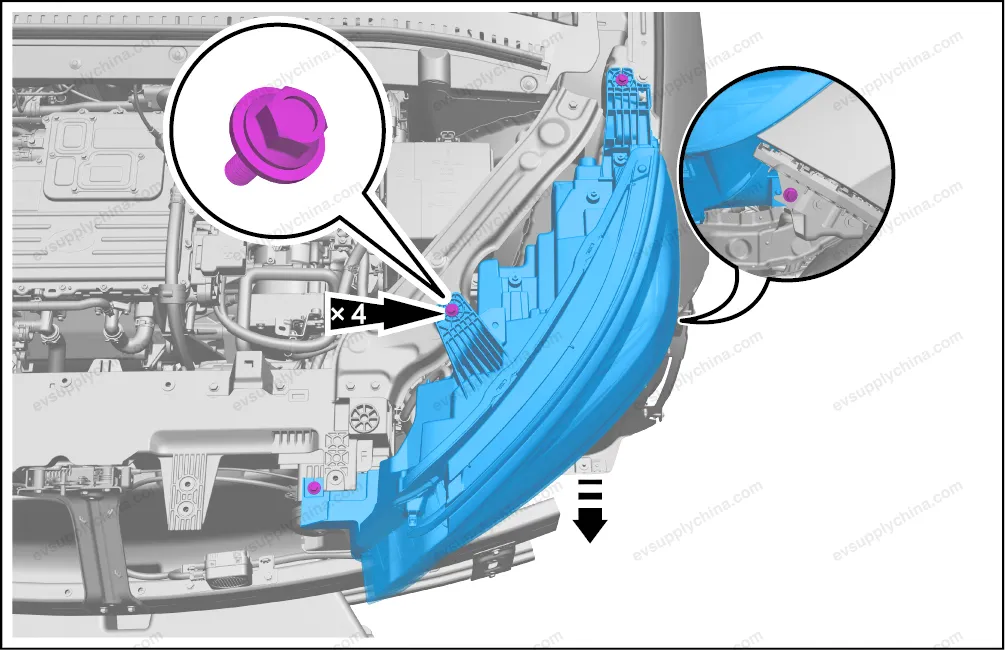

- Remove 4 fixing bolts, and take out the left combination headlight assembly.
Installation
- The installation steps are opposite to the removal steps.
Right Combination Headlight Assembly - Removal and Installation
Removal
- Remove the front compartment right trim panel assembly. See Front Compartment Right Trim Panel Assembly - Removal and Installation
- Remove the front bumper assembly. See Front Bumper Assembly - Removal and Installation

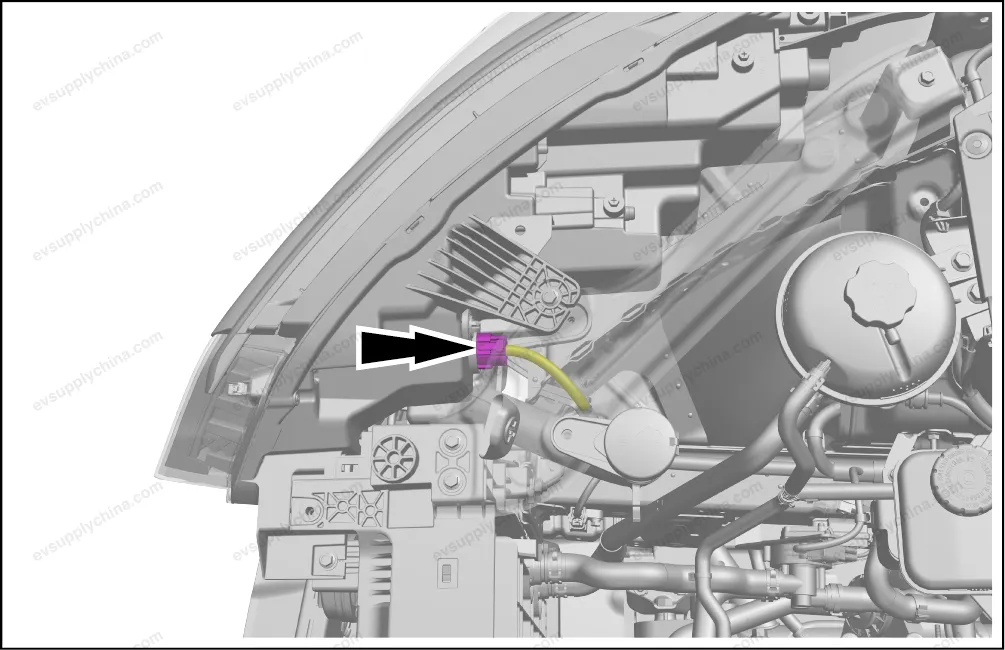

- Disconnect 1 connector of right combination headlamp assembly.

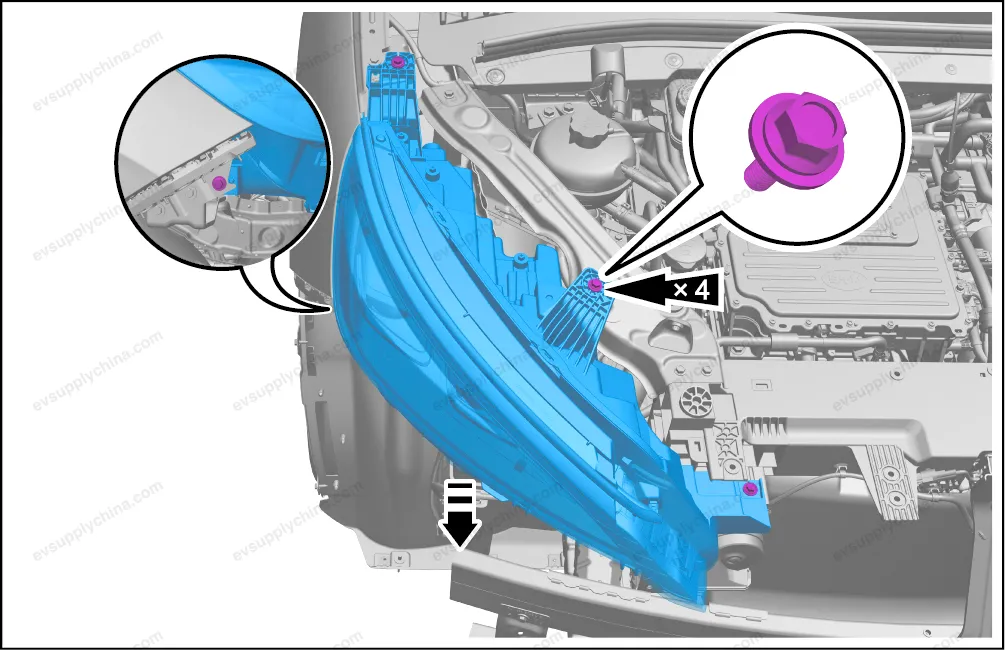

- Remove 4 fixing bots, and take out the right combination headlight assembly.
Installation
- The installation steps are opposite to the removal steps.
