BYD Atto 3
Rakitan spatbor roda belakang kanan
Kode OE / Material
13222125-00SC2E-3102140$38USD
TersediaButuh harga grosir atau pembelian massal?
Spesifikasi Teknis
- Model Kendaraan
- BYD Atto 3
- Konfigurasi Kemudi
- Universal (Setir Kiri & Kanan)
- Kategori
- Fender & Spakbor
Pengiriman & Pengembalian
Dikirim ke seluruh dunia dari Shanghai, Tiongkok melalui pengiriman udara atau laut. Pengiriman standar 5–30 hari kerja, ekspres 2–10 hari kerja. Biaya pengiriman dihitung saat checkout.
Jendela pengembalian 7 hari untuk barang yang belum digunakan dalam kemasan asli. Hubungi kami sebelum mengembalikan barang apa pun.
Kendaraan yang Kompatibel — Rakitan spatbor roda belakang kanan
BYDYuan PLUS/Atto 3
2022–2025Rakitan spatbor roda belakang kanan Panduan Bengkel — BYD Atto 3
Right Rear Wheel Mudguard Assembly - Removal and Installation
Removal
- Remove the right rear wheel assembly. See Wheel Assembly - Removal and Installation
- Remove the right rear wheel eyebrow trim panel assembly. See Right Rear Wheel Eyebrow Trim Panel Assembly - Removal and Installation

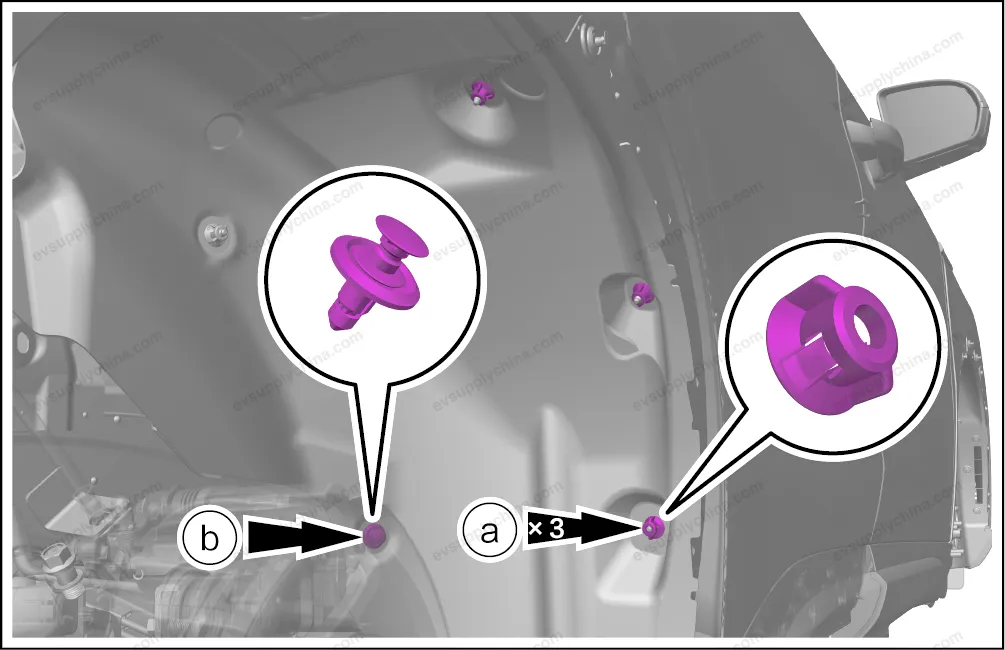

- Remove the fasteners from the right rear wheel mudguard assembly.
- Remove 3 plastic nut.
- Remove 1 fixing clips.
- Remove the right rear wheel mudguard assembly.
- Remove 4 fixing screws.
- Remove 3 plastic nut.
- Remove 5 fixing clips, and take out the right rear wheel mudguard assembly.
Installation
- The installation steps are opposite to the removal steps.
Left Rear Wheel Mudguard Assembly - Removal and Installation
Removal
- Remove the left rear wheel assembly. See Wheel Assembly - Removal and Installation
- Remove the left rear wheel eyebrow trim panel assembly. See Left Rear Wheel Eyebrow Trim Panel Assembly - Removal and Installation

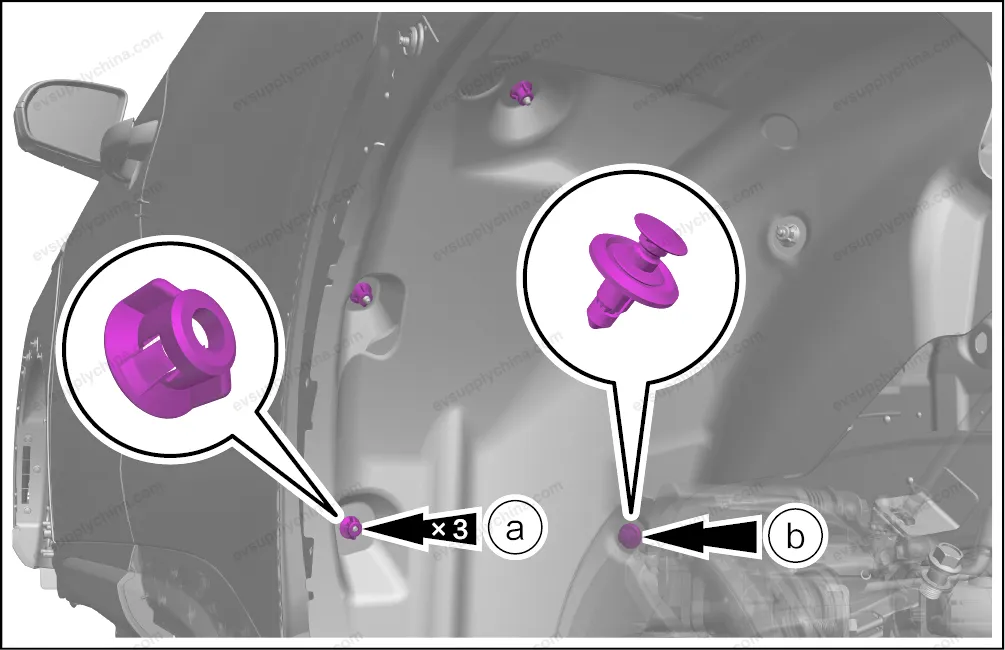

- Remove the fasteners from the left rear wheel mudguard assembly.
- Remove 3 plastic nut.
- Remove 1 fixing clips.
- Remove the left rear wheel mudguard assembly.
- Remove 4 fixing screws.
- Remove 3 plastic nut.
- Remove 5 fixing clips, and take out the left rear wheel mudguard assembly.
Installation
- The installation steps are opposite to the removal steps.
